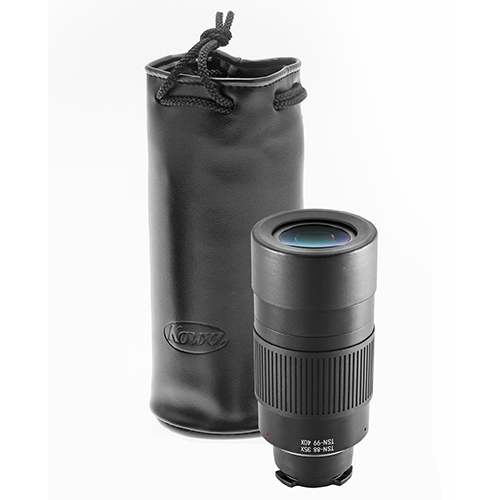

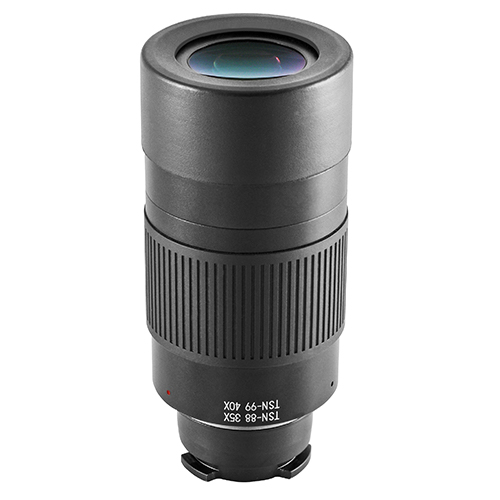

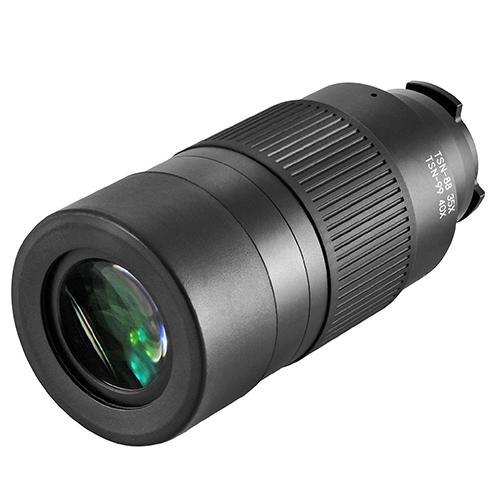

Kowa TE-80XW 40x Extreme Wide Eyepiece
The TE-80XW 40x extreme wide eyepiece produces an incredible 80-degree field of view allowing for an incredibly immersive experience. The TE-80XW delivers a 40x magnification and a field of view of up to 37m at 1000m distance allowing you to quickly find a subject. A flat resolution is maintained throughout the entirety of the 80-degree field of view thanks to the field flattener lens incorporated into the optical design.
Click here for full product specifications>
The TE-80XW offers a a 40x magnification and a field of view of 39m when paired with the TSN-99 or a 35x magnification and a field of view of 45m when paired with the TSN-880 or 770 spotting scopes at 1000m distance.
The eyepiece benefits from Kowa’s unique KR coating that limits chromatic aberration and repels dirt, moisture and dust from building on its surface. It is also fully waterproof and sealed against the elements.
Compatible with:
Kowa TSN-99 / TSN-880 / TSN-770 series spotting scopes.
Works with all Kowa accessories
The TE-80XW is compatible with 100% of Kowa’s accessory range including the TSN-EX16 1.6x extender for magnification up to 64x when paired with TSN-99 series and 56x with TSN 880/770 series.
Key Features:
- Magnification: 40x (99 Series) 35x (880/770 Series)
- Field of view (degree): 80
- Exit Pupil Diameter: 2.5 (99/880 series) 2.2 (770 series)
- Relative Brightness: 59.3 (99 series) 55.5 / 51.9 (880/770 series)
- Twilight Factor: 59.3 (99 series) 55.5 / 51.9 (880/770 series)
- Eye Relief: 17.0mm
- Field of view at 1000m: 39m (99 series) 45m (880/770 series)
FAQs
What do I need to digiscope with the TE-80XW eyepiece?
You will require the following:
- TE-80XW eyepiece
- Kowa spotting scope
- TSN-PA7A digiscoping adapter
- PA7-XWR extended inner ring
- DSLR/Mirrorless camera
