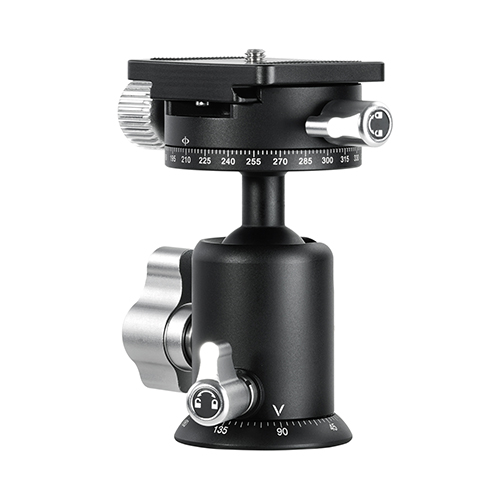

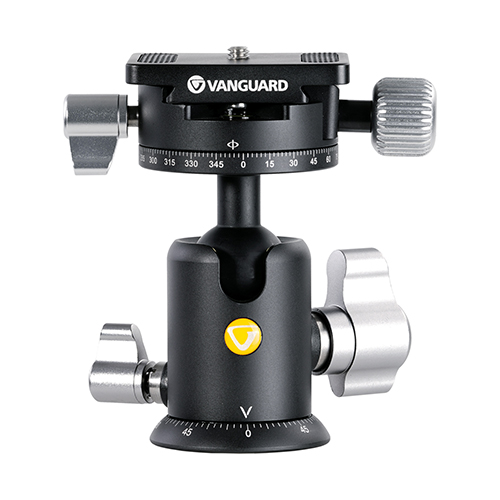

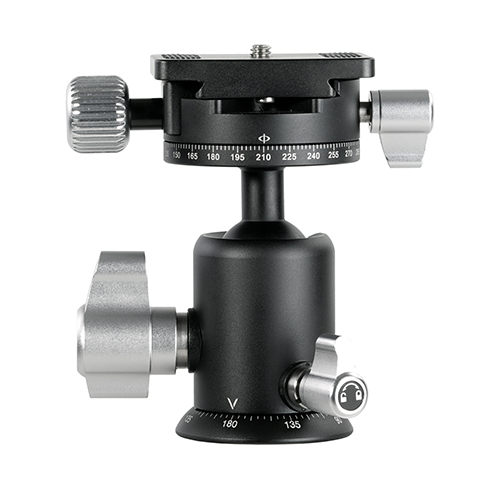

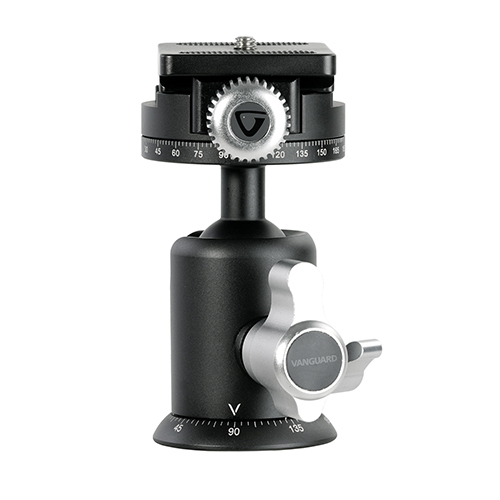

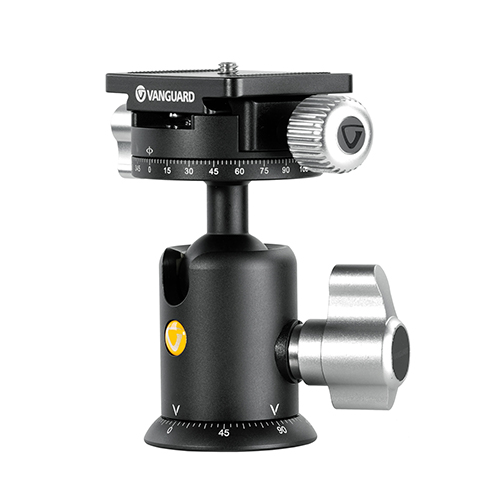

Vanguard VEO BH-110S Arca Compatible Dual Axis Ball Head
Put yourself in control with the VEO BH-110S Arca Compatible Dual Axis Ball Head. With Vanguard’s Dual Axis System aim your camera with ultimate precision even on uneven terrain. This ball head is compatible with all tripods featuring a 3/8" or 1/4" thread and is best suited to large travel, or mid-sized tripods.
Click here to view all new Vanguard VEO accessories>
Vanguard’s Dual Axis System
Make precise micro-adjustments with Vanguard's own Dual Axis System that introduces a second pan axis under the quick release plate. Comprised of two 360º panning knobs located on the base and under the quick release plate, rotate your camera 360º degrees at any angle. The easy grip locking knobs are located for quick access for adjusting the head with efficiency.
Perfect panoramas
The Dual Axis System means that even over uneven terrain the camera can still be positioned perfectly on the ball joint for a level horizon. Achieving picture-perfect panoramas.
Quick Shoe QS-62V3
The VEO BH-110S comes with the QS-62V3 Quick Shoe for a quick release plate mount. With an anti-skid design, the QS-62V3 platform holds your camera securely on the ball head reducing the risk of accidents.
Max load 10kg
The maximum load capacity of the BH-110S is 10kg which is a convenient allowance that can easily hold cameras with telephoto lenses at no risk of damage.
For something with a little more capacity check out the VEO BH-160S which can hold 15kg >
Arca Compatible Ball Head
This Arca-compatible ball head has a universal 1/4" screw that fits almost all cameras. The unique wave design found on the base of the head provides a solid fit for any tripod with a 3/8" or 1/4" screw adaptor. The BH-110S is best suited for larger travel tripods such as the VEO 3T 234AB, or mid-sized tripods such as the VEO 3GO 265HCB.
Aircraft-grade aluminium
Precision machined from aircraft-grade aluminium with the latest CNC technology, the arca compatible VEO BH-110S is built to be lighter, stronger and more durable. Despite weighing just 427g this ball head can hold almost any kit and move incredibly precisely.
Key Features
- Max load capacity 10kg
- Dual-axis system
- 360º rotation on two axis
- Aircraft-grade aluminium
- CNC technology machined
- Easy-use locking knobs
- For travel and mid-sized tripods
View the full specifications here >
What’s in the box?
- VEO BH-110S Ball Head
- QS-62V3 Quick Shoe
- 1/4" & 3/8" Adaptor Thread Included
FAQs
What is the base diameter?
50mm
What is the maximum load capacity of this ball head?
10kg
What kind of kit is this suitable for?
The BS-110S Ball Head is a great choice for Mirrorless, DSLR and Pro photography kits.
