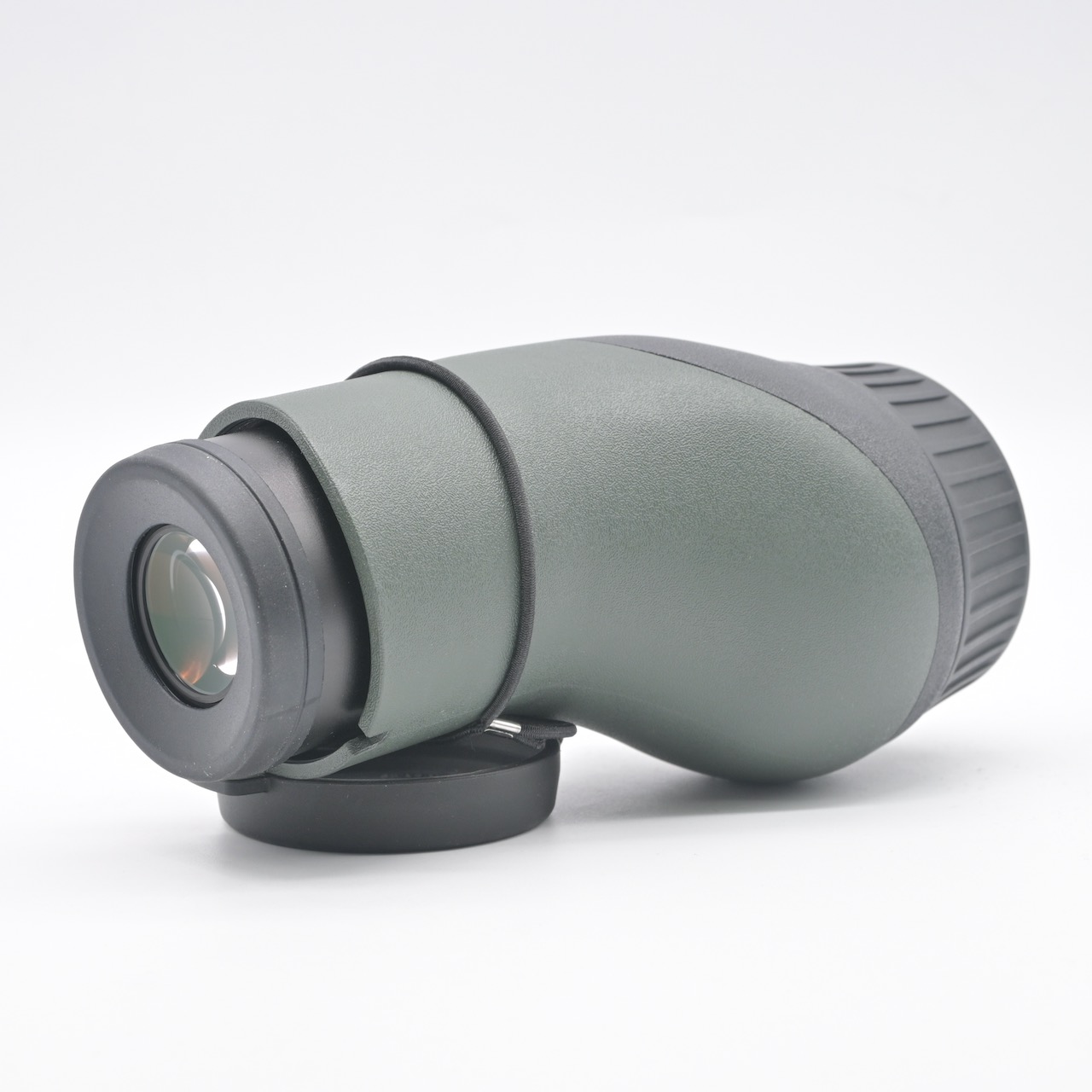

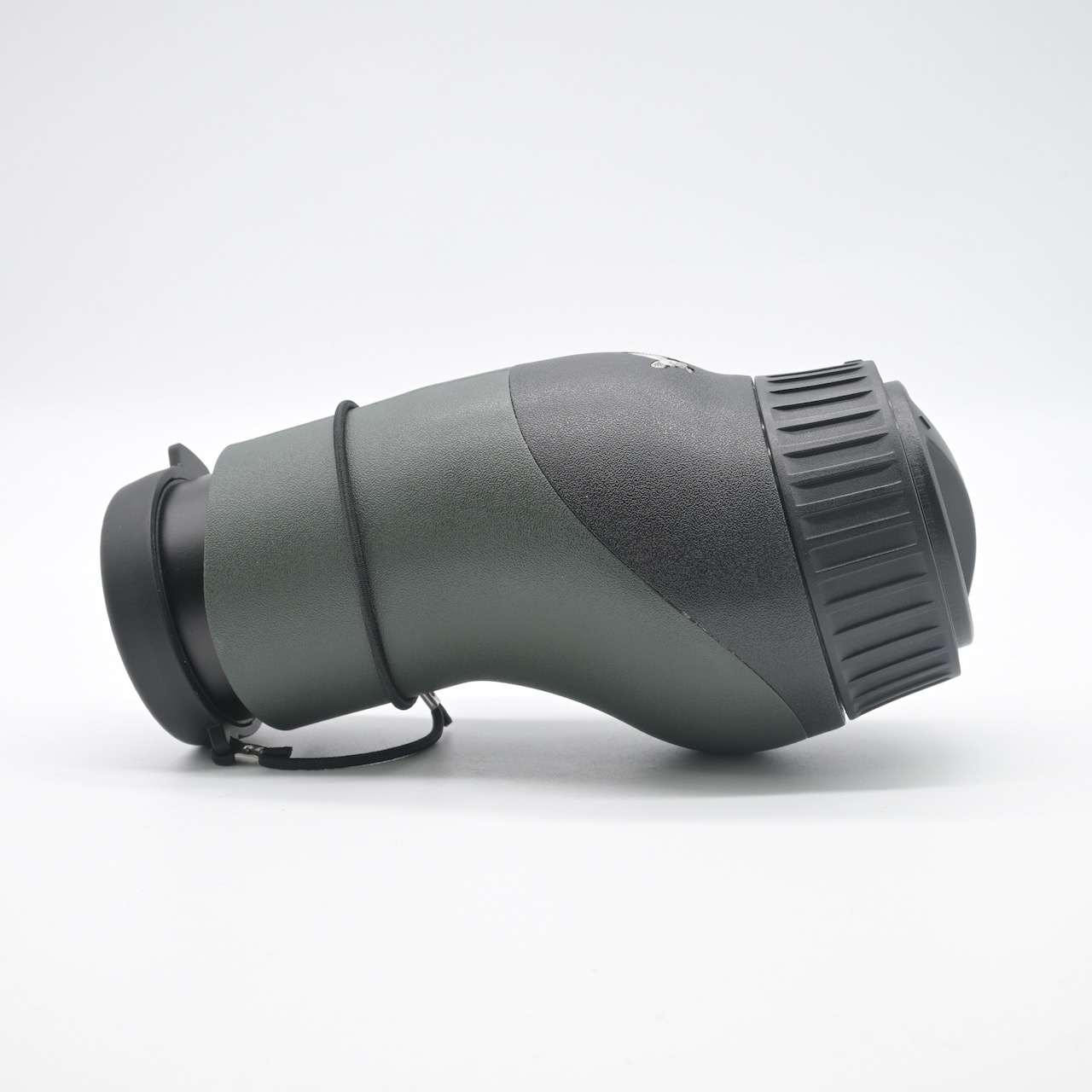

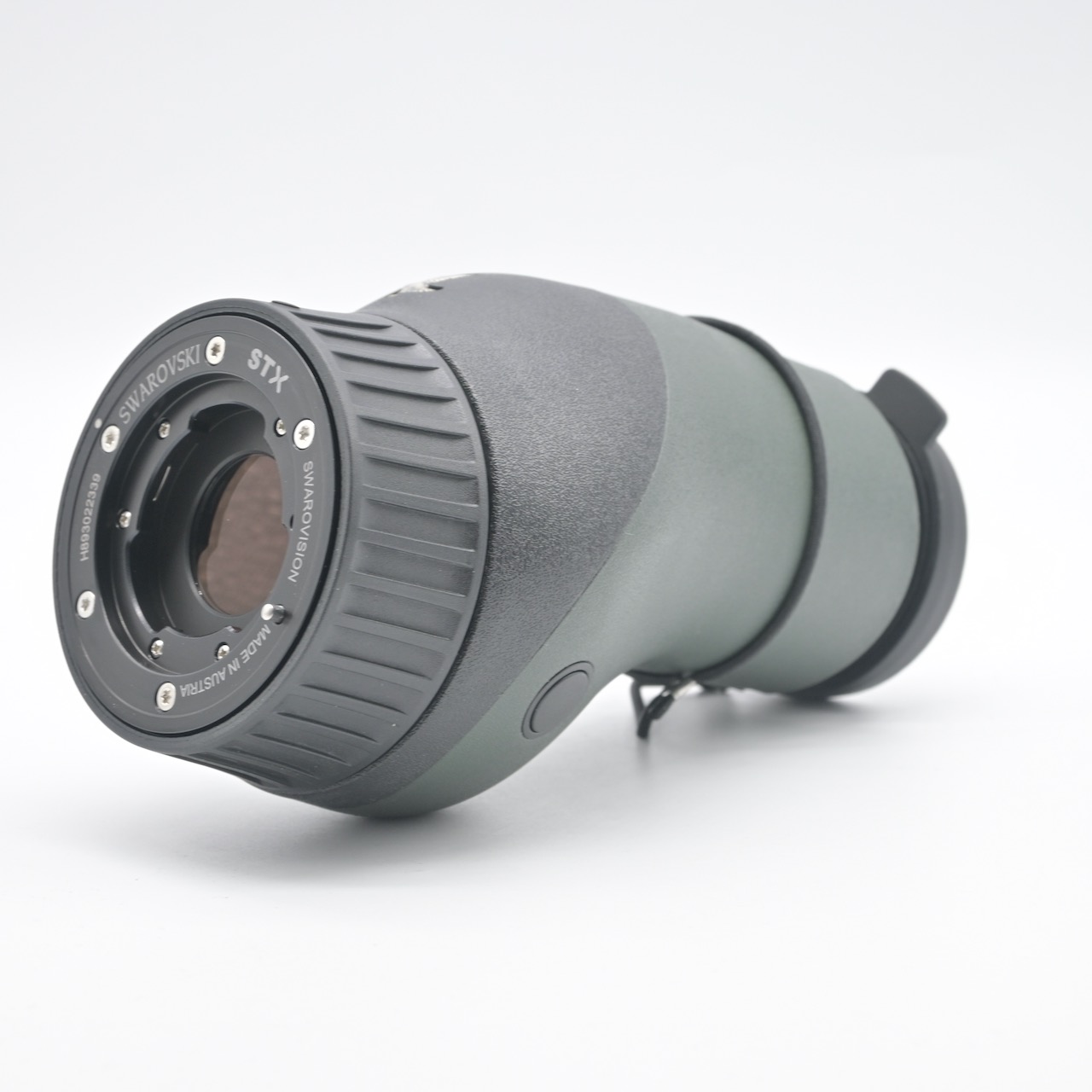

How do we rate the condition of our Used Swarovski STX Straight Eyepiece Module Only (2019)
Condition - Mint – Minimal Signs of Use. Optics clean and unmarked.
Included Accessories - Box, Manual, Objective Cap, Lens Cap
MPN - TM-1M3K20-0 || Clifton's Code – 14170225
Key Features of the Used Swarovski STX Straight Eyepiece Module Only (2019)
| Technical data | ||||
|---|---|---|---|---|
| ATX/STX 25-60x65 | ATX/STX 25-60x85 | ATX/STX 25-70x95 | ||
| Ø65mm | Ø85mm | Ø95mm | ||
| Magnification | 25-60x | 25-60x | 30-70x | |
| Effective objective lens diameter (mm) | 65 | 85 | 95 | |
| Exit pupil diameter (mm) | 2,6-1,1 | 3,4-1,4 | 3,2-1,4 | |
| Exit pupil diameter (mm) | 20 | 20 | 20 | |
| Field of view (m/1000 m / ft/1000 yds) | 124-68 ft 41-23 m |
124-68 ft 41-23 m |
104-57 ft 35-19 m |
|
| Field of view (degrees) | 2,37-1,30 | 2,37-1,30 | 1,98-1,09 | |
| Field of view for spectacle wearers (degrees) (mit Spezialaugenmuschel*) |
2,37-1,1 (2,37-1,30) |
2,37-1,3 (2,37-1,30) |
1,98-1,0 (1,98-1,09) |
|
| Field of view, apparent (degrees) | 57-71 | 57-71 | 57-71 | |
| Shortest focusing distance (m / ft) | 6.91 ft1) 2,11 m1) |
11.8 ft 3,6 m |
15.7 ft 4,8 m |
|
| Diopter correction at ∞ (dpt) | > 5 | > 5 | > 5 | |
| Light transmission (%) Gesamtprodukt | 86 | 86 | 86 | |
| Objective filter thread | M 67 x 0,75 | M 87 x 0,75 | M 97 x 0,75 | |
| Length approx. (mm/in)* | Angled view | 13.3 in 339 mm |
14.6 in 372 mm |
16.8 in 426 mm |
| Straight view | 14.4 in 367 mm |
15.7 in 400 mm |
17.9 in 454 mm |
|
| Weight (g / oz) | Angled view | 55.9 oz 1585 g |
67.4 oz 1910 g |
75.8 oz 2150 g |
| Straight view | 57.8 oz 1640 g |
69.3 oz 1965 g |
77.8 oz 2205 g |
|
| Focal length with TLS APO* (mm) | 750-1800 | 750-1800 | 900-2100 | |
| Functional temperature | -13 °F to +131 °F (-25 °C / +55 °C) | |||
| Storage temperature | -22 °F to +158 °F (-30 °C / +70 °C) | |||
| Submersion tightness | 4 m (13 ft) water depth (filled with nitrogen) | |||
| * available from specialist retailers, 1)Perfect for Macro digiscoping | ||||
