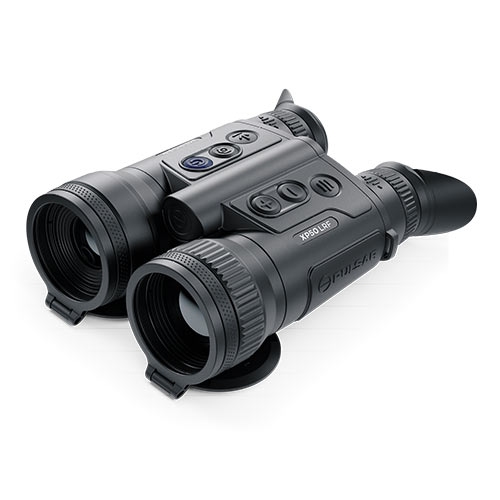

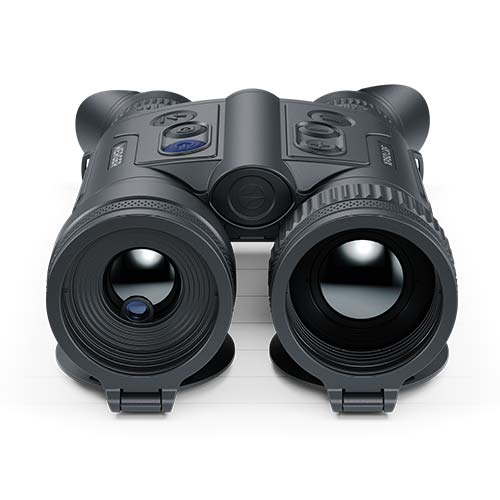

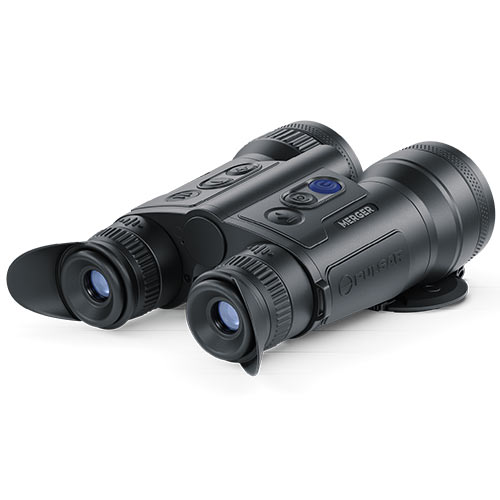

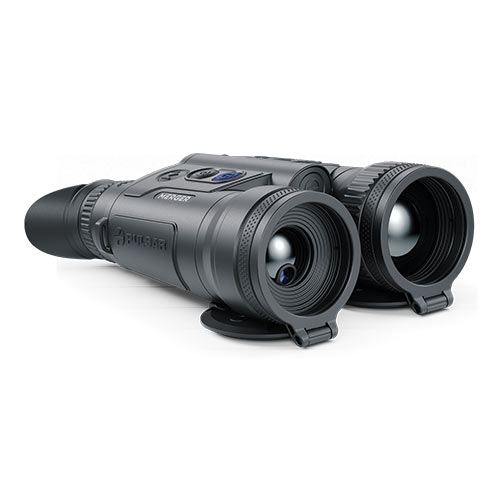

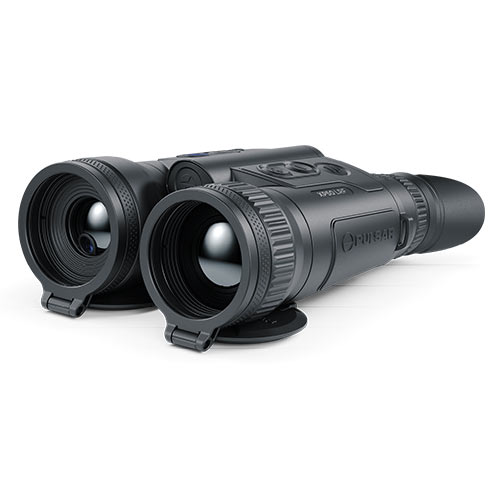

Pulsar Merger LRF XP50
The Pulsar Merger LRF XP50 has been designed with a powerful 640x480,17µm, <25mK thermal sensor with a 50Hz refresh rate and 50mm f1.0 germanium lens This combination allows the Merger LRF XP50 to provide a detection range of up to 1800m and the ability to capture minimal temperature differences in conditions where the thermal contrast is low.
Variable Magnification
The Merger LRF XP50 has been optimised to retain excellent, high-quality thermal imagery throughout its entire 2.5X - 20x magnification range. The Merger LRF XP50 has up to 8x zoom available. The digital zoom can be increased by 2x steps or continuously up to 20x magnification, for a fully customisable field of view that can be altered to match any situation.
Precision Laser Rangefinder
The Merger LRF XP50 features a precision laser rangefinder which has been integrated into these thermal binoculars, allowing you to gather information such as the distance between you and the object you are observing. This system offers a measuring distance of up to 1000m ± 1m in a single measurement or set to scanning modes.
HD AMOLED Display
Enjoy crisp, rich high contrast thermal images presented on a 1024x768 HD AMOLED display. Providing you with a fluid flawlessly high-resolution image.
Adjustable Interpupillary Distance
Pulsar has taken into consideration the effect of eyestrain, which might occur when receiving visual information through two separate channels at the same time. The Merger, therefore, has an adjustable interpupillary distance of 51-71mm, enabling better performance in low-contrast scenarios.
Classic Design
The Merger LRF XP50 has a classic binocular design, this traditional construction allows for an ergonomic and comfortable positioning over long periods of observation. There are six function buttons along the body of the Meger, each placed in a comfortable and convenient arrangement, the most used function buttons can be activated with a single touch.
Advanced Image Processing Algorithms
The Merger LFR XP50 features detail boost technology, which increases the sharpness of the visual object, this allows the XP50 to better identify contours and display small object details.
8 Colour Palettes
Change your colour palette depending upon the conscious and specific task, 8 colour palettes have been programmed into the Pulsar Merger LRF XP50 including white hot, black hot and red hot for object detection, and rainbow and ultramarine have been designed for object recognition and identification. Colour modes such as red monochrome, sepia and violet are most suitable for long periods of observation in darkness.
Calibration Modes
Featuring three calibration modes including manual, semi-automatic and automatic. Each mode can be used to equalise the microbolometer temperature background and eliminate defects. This can assist in resulting in consistent image quality.
Up To 10 Hours of Battery Life
The Merger LRF XP50 has been designed with a unique dual battery system, featuring two rechargeable batteries which include a built-in 4 Ah battery and a replaceable 3.2Ah battery. This system provides up to 10 hours of power on a single charge. The replaceable battery has an embossed design, allowing you to be able to quickly identify and position the replacement battery with ease even in darkness.
Display Off Mode & Instant Start-Up
Conserve energy with the display off mode, which reduces your screen's brightness to an absolute minimum, while the device's systems still remain operational. The device can be restarted quickly with instant-start-up, powering the display back on in only three seconds.
Highly Durable Design
The Merger LRF XP50 system has been curated with a rugged magnesium alloy housing. It is ideal for protecting internal components from shocks, drops, moisture, heat and cold in its solid but lightweight housing.
IPX7 Waterproof
The Merger LRF XP50 has an IPX7 waterproof rating, indicating that this thermal imaging device can withstand being submerged in water for 30 minutes at a depth of 1 meter. This helps to guarantee that the device can withstand being used in a number of harsh weather conditions.
Operating Temperatures
The Pulsar Merger LRF XP50 has been designed to be used consistently in a number of different weather conditions and temperatures. It can therefore operate without issue in extreme temperatures from -25°C to 50°C.
Built-In Video Recorder
The Merger LRF XP50 has 16GB internal memory, allowing you to record and store those once-in-a-lifetime moments at just the touch of a button. The images and footage can be transferred quickly to a computer with a USB-C connection or via the Steam Vision 2 app.
Built-In Wi-Fi Module
Connect the Merger LRF XL50 to your mobile devices to transfer your data with a standard 2.4GHz Wi-Fi frequency with an effective 5 GHz connection range. This built-in wifi system allows you to enjoy reliable communication between the thermal imager and the smartphone.
Stream Vision 2
Stream Vision 2 is a compatible app which provides a variety of intuitive features and functionalities, such as being able to use your mobile as a second screen or remotely controlling the thermal imaging device.
Key Features:
- 8x zoom
- 640x480,17µm, <25mK thermal sensor
- HD AMOLED Display
- Precision Laser Rangefinder
- 8 Colour Palettes
- magnesium alloy housing
- IPX7 Waterproof
- Operates in temperatures ranging from -25°C to 50°C
- Built-In Video Recorder
- Built-In Wi-Fi Module
What’s In The Box?
- Pulsar Merger LRF XP50
- Carrying Case
- Lens Caps
- Eyecups
- APS3 Battery Pack
- Tripod Adapter
- APS Charging Dock
- USB Type-C Mains Adapter
- USB Type-C Cable
- USB Type-C to Micro USB Cable
- Lens Cloth
- Warranty Card
- Quick Start Guide
