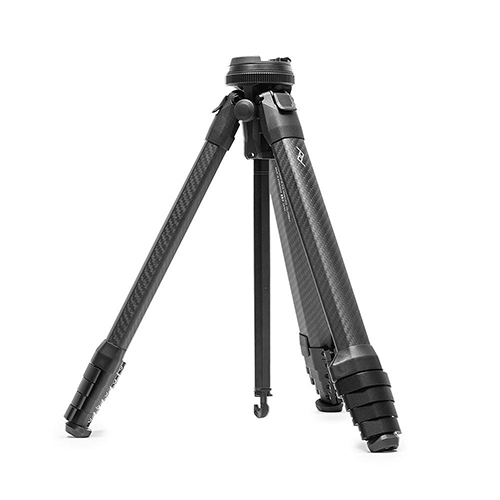

Peak Design Travel Tripod - Carbon
For many years, the design of a traditional and even travel tripod has never really changed. No matter how good design and upgrade may well have been, there was still needless bulk and wasted space. Peak Design has spent '4 years redesigning the tripod from the ground up' and they have managed to create a travel tripod that 'packs down to the diameter of a water bottle', without compromising the stability, features or overall height of the tripod.
Radically faster to set up and take down, our tripod features ergonomic adjustment points, built-in mobile compatibility, and thoughtful details at every turn. Plus, it’s built for life on the road: durable, 100% serviceable, and backed by the Peak Design lifetime guarantee.
Tripod includes legs, ball head, protective soft case, ARCA-compatible Standard Plate, mobile mount, hex tool with carrying clip, and bushing removal tool for maintenance.
Pro Performance. Half the Size.
The Travel Tripod brings you pro-level stability, load capacity, and deployed height, yet packs down to the diameter of a water bottle. A ground-up redesign of the traditional tripod, the Travel Tripod is the result of 4 years of engineering.
Groundbreaking Architecture

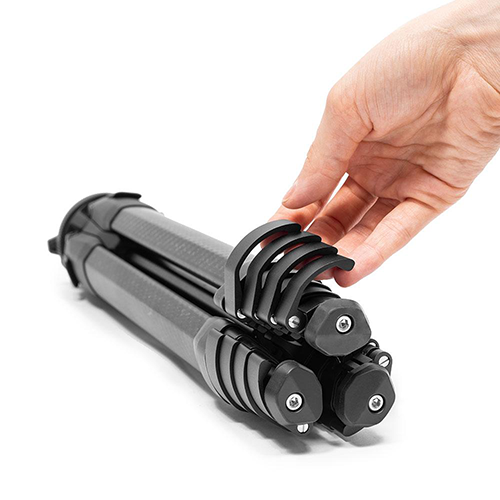

The spatially efficient design eliminates wasted volume when packed down. Packs down to the diameter of a water bottle. No protruding knobs.
Lightning-Fast Deployment
Unique design allows quicker, easier setup/takedown.
Secure, fast, and ergonomic camera quick release.
Fast-locking, low profile leg cams.
Legs deploy in seconds, without having to flip over like traditional travel tripod legs.
Pro-Level Stability & Features
20lb weight capacity (optimized for a full-frame DSLR + telephoto lens).
Stability and vibration damping performance comparable, if not better, than most tripods in its class.

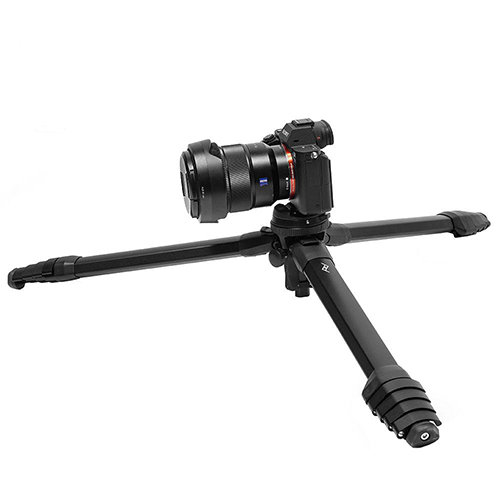

Low and inverted modes position your camera inches off the ground.
Integrated load hanging hook.
Nonslip, shock-absorbing feet.
Anchor attachment points for carrying with Peak Design straps (sold separately).

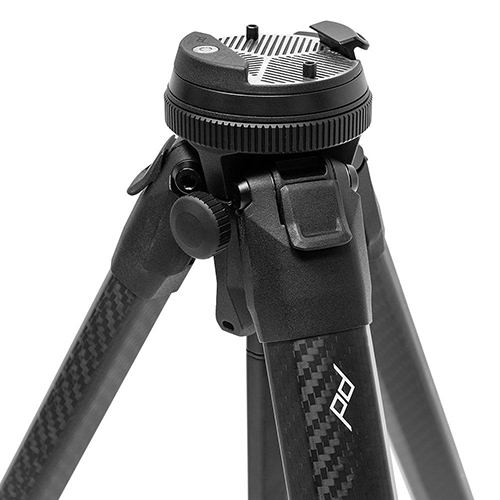

Ergonomic Ball Head
Ultra-smooth, omnidirectional Compact Ball Head.
One single adjustment ring. No bulky or confusing knobs.
Simple locking ring for total security.
Compatible with all PD plates and most 3rd party Arca-type plates.
Removable pins allow use with most Arca-type L-brackets.
Built-in and stowable mobile mount.
Securely grips any phone/case.
Built to Last
Weather and impact-resistant materials.
All parts are serviceable, cleanable, and replaceable.
Includes a padded, weatherproof case.
Guaranteed for life.
Product Specifications
SKU/PART NUMBER:
TT-CB-5-150-AL-1 (Aluminum)
TT-CB-5-150-CF-1 (Carbon Fiber)
WEIGHT:
Alloy: 1.56 kg (3.44 lbs)
Carbon: 1.27 kg (2.81 lbs)
WEIGHT CAPACITY:
9.1 kg (20 lbs)*
*Optimized for pro setups, up to full-frame DSLR + telephoto lens
COLLAPSED DIMENSIONS:
Length: 39.1 cm (15.4”)
Diameter: 7.9 cm (3.125")
DEPLOYED DIMENSIONS:
Max height (center column raised): 152.4 cm (60")
Max height (center column down): 130.2 cm (51.25")
Min height (low mode): 14 cm (5.5”)
Tabletop Mode (center column raised): 57.2 cm (22.5")
Tabletop Mode (center column down): 35.9 cm (13.125")
LEG SECTIONS
5
LEG LOCKS
Aluminium cams
MATERIALS:
Ball Head, Hub, Load Hook: Powdercoated A380 aluminium
Legs: Anodized 6061-T6 aluminium (Alloy), Carbon F’n fibre (Carbon)
Quick Release, Adjustment Ring, Center Column Knob: Anodized 6061-T6 aluminium
Locking Ring: Polycarbonate/ABS blend
Feet: ShoreA60 TPU
