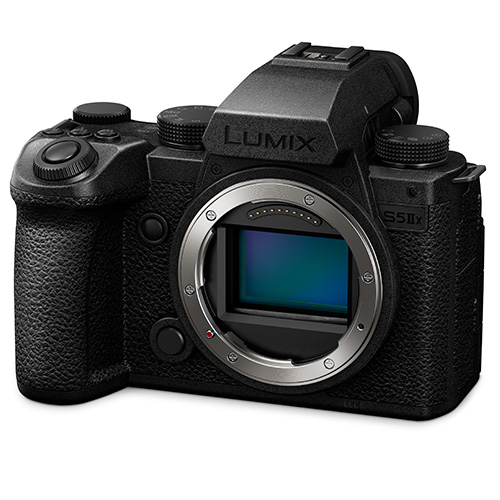

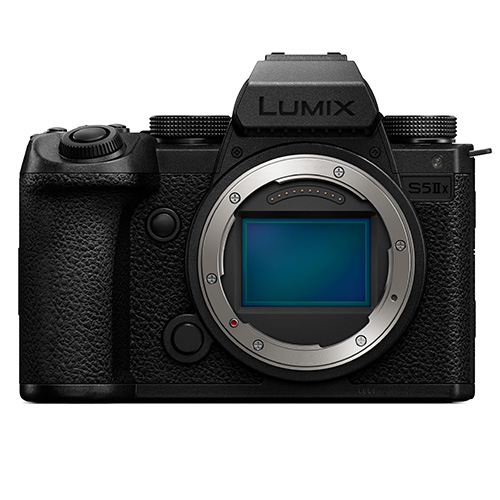

Panasonic LUMIX S5 II X Mirrorless Digital Camera Body
The LUMIX S5 II X and S5 II are the latest additions to Panasonic’s S series of mirrorless cameras. The S5 II X features a matte black finish and is capable of 5.8K Apple ProRes recording to SSD via HDMI or USB, and ALL-Intra Recording. The S5 II X can also support Apple ProRes RAW video output to Atomos, as well as wired* and wireless IP streaming and USB tethering. All other features are the same on both models.
Both cameras feature a Hybrid Phase Detection AF system, enhanced Active I.S. and a newly developed 24-megapixel full-frame CMOS sensor. Other features include 30fps stills shooting with AFS/AFC, high-speed 4K/C4K 60P 4:2:2 10-bit, unlimited recording, a new hidden fan design, real-time LUT and a high resolution 3,680k OLED LVF offering incredible performance for both photo and video capture.
* Requires USB-LAN adapter, sold separately.
The S5 II X is available as the following kits;
- Panasonic LUMIX S5 II X Mirrorless Digital Camera Body
- Panasonic LUMIX S5 II X with S Series 20-60mm F3.5-5.6 lens
- Panasonic LUMIX S5 II X with 20-60mm and 50mm Lenses
Hybrid Phase Detection AF system
The LUMIX S5 II X sets new standards in AF performance thanks to a new imaging engine, featuring L2 Technology, as well as a new 24-megapixel sensor to deliver Hybrid Phase Detection Auto-Focus (PDAF). The S5 II achieves this via a new Phase Hybrid AF system that combines PDAF with Contrast Detect AF that provides 779-area metering, allowing you to detect and track subjects in difficult conditions such as low light and backlit situations. You can also use continuous AF during zooming* and AF micro adjustment.
*Conventional zoom lenses require a firmware update to use Continuous AF during zooming.
Unlimited Recording Time & New Heat Management System
The LUMIX S5 II X offers some truly impressive features for videographers including internal 4:2:0 10-bit 6K (3:2) and 5.9K (16:9) at 30fps and 4:2:2 C4K and 4K at up to 60fps as well as HFR (High Frame Rate) recording at up to 120fps and Slow & Quick capture at up to 180fps.. The camera also features a new low-profile heat management system that allows for unlimited recording times* without having to increase the size of the body.
The S5 II X is also capable of 5.8K Apple ProRes recording to SSD via HDMI or USB, and ALL-Intra Recording. The S5 IIX can also support Apple ProRes RAW video output to Atomos, as well as wired** and wireless IP streaming and USB tethering. All other features are the same on both models.
*When the camera is used at recommended operating temperature 0-40 degrees C. 6K and 5.9K at 30p/25p video recording stops once when continuous recording time exceeds 30 minutes if [Thermal Management] is set to [STANDARD].
** Requires USB-LAN adapter, sold separately.
Real-Time LUT
The S5 II X features a number of picture profiles such as 14+ stop V-Log/V-Gamut as well as a new REAL TIME LUT function. This allows colour grading LUTs to be uploaded to an SD card and directly applied in-camera, saving you time in post-production. Other useful video features include a Waveform Monitor, Vector Scope and Zebra Pattern, as well as features such as System Frequency (24.00Hz) and Synchro Scan.
4 Channel Audio
The S5 II X is capable of 48kHz 24-bit when using the built-in microphone or external mic via the 3.5mm jack as well as 48kHz/96kHz 24-bit when used with the Panasonic DMW-XLR1* to give you a wide range of audio capture options whether you be shooting a single person talking to the camera, multiple subjects for interview situations as well as backup and/or ambient recording.
*Sold separately
Not just for Videographers
While the S5 II X hosts a huge array of features aimed at the videographer it is also a fantastic option for photographers. The camera is capable of high-speed burst shooting at up to 9fps when using the mechanical shutter and up to 30fps with an electronic shutter, making it possible to capture up to 300 images. Other features include a 96MP High-Resolution Mode (JPEG/RAW) and Dual Native ISO sensitivity to minimise noise and allow a maximum ISO of 51200 (204800 when Extended).
New Active I.S.
The LUMIX S5 II X features a new Active I.S. system to aid the user with challenging handheld shooting situations such as walking or using telephoto lenses. The system ensures smooth video capture by optimising horizontal, vertical and rotational correction and compensates as much as 200%* when compared to conventional stabilisation systems.
*Compared with LUMIX S5. Focal length 20mm, when using S-R2060.
Perfect for the ‘one-person crew’

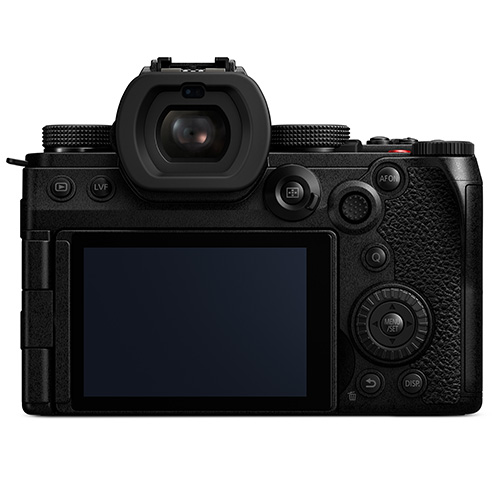

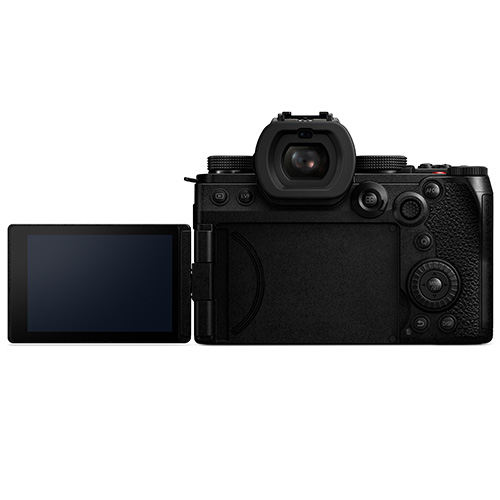

The S5 II X offers a range of functions to assist with a fast and efficient workflow such as AWB Lock, MF Assist (available for both video* and photo shooting), as well as a Live Crop function, that records video footage using the entire sensor surface so that you can crop 4K and FHD images out in post-production. Other useful features include a new easy-to-operate 8-way joystick, expanded drive dial, 3.0-inch free-angle touch-control monitor and large, 3,680K-dot OLED Live View Finder.
*Up to 60p. Does not work in Variable Frame Rate mode.
Design and Build

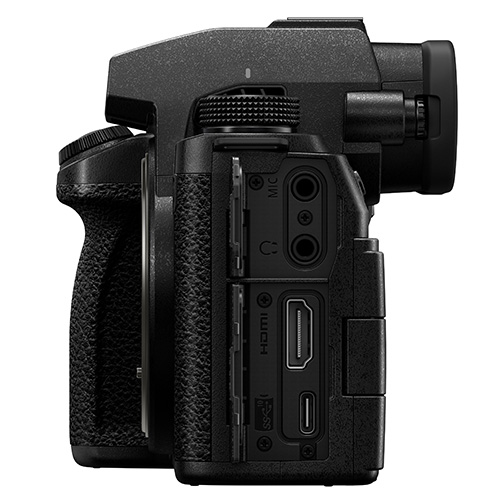

The camera features a matte black finish that has been constructed with magnesium alloy die-cast front and rear frames. It is splash- and dust-resistant* so that you can operate in less-than-ideal conditions. There have been a number of connectivity improvements such as a full-size HDMI Type A terminal and high-speed USB 3.2 Gen 2 as well as a cable lock holder.
Wireless connectivity has also been improved, with Wi-Fi 5GHz** joining 2.4GHz for quick and stable communication with mobile devices.
The S5 II features dual UHS-II card slots and supports Relay Recording, Backup Recording and Allocation Recording and uses the DMW-BLK22 (2200mAh) battery which can be recharged via AC or USB.
*Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
**5GHz Wi-Fi is not available in some countries.
Future firmware updates and LUMIX Pro program
Unlike the LUMIX S5 II, the X camera comes with the ability to stream RAW video via HDMI straight from launch – no firmware update required.
The S5 II X is also a qualifying product for the LUMIX PRO program which has been designed to support LUMIX users, with a range of benefits not only in their own countries but also in countries that they visit for work. You can check for more details and Terms & Conditions, on eligible levels, countries and products at www.lumix-pro.com.
Key Features
- Matte Black Finish
- Active I.S. up to 200% improved while walking
- High-resolution 6K Video
- High Speed 4K/C4K 60P 4:2:2 10-bit
- 5.8K Apple ProRes recording to SSD via HDMI or USB
- Supports Apple ProRes RAW video output to Atomos
- Unlimited Recording
- Full-Size HDMI
- High-resolution 3,680k OLED LVF
- Real-Time LUT
- 30fps stills shooting with AFS/AFC
- 24MP full-frame Hybrid with Phase AF
Click here for full product specifications >
What’s in the box?
- 1 x Panasonic LUMIX S5 II X camera body
- 1 x Body Cap
- 1 x Hot Shoe Cover
- 1 x Cover for the Battery Grip Connector
- 1 x Shoulder Strap
- 1 x Battery Pack (DMW-BLK22)
- 1 x AC Adaptor
- 1 x USB Connection Cable (A-C)
FAQ
What is the difference between the S5 II and the S5 IIX?
The S5 IIX features a matte black finish and is capable of 5.8K Apple ProRes recording to SSD via HDMI or USB, and ALL-Intra Recording. The S5 IIX can also support Apple ProRes RAW video output to Atomos, as well as wired* and wireless IP streaming and USB tethering. All other features are the same on both models.
What lenses are compatible with the LUMIX S5 IIX?
The LUMIX S5 II is compatible with the entire existing range of 14 LUMIX S lenses, plus further full-frame L-Mount system lenses produced by Panasonic’s L-Mount partners.
What battery does the LUMIX S5 IIX use?
The S5 II uses the DMW-BLK22 (2200mAh) battery which is the same as in the Panasonic S5.
