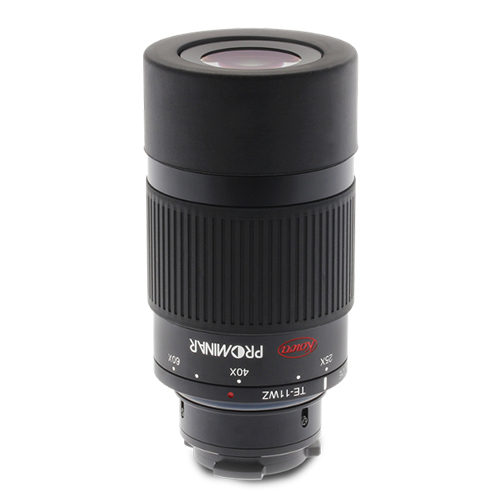

Kowa TE-11WZ II 25-60x/30-70x Wide Zoom Eyepiece
The newly updated Kowa TE-11WZ II follows the recent introduction of the TSN-99 PROMINAR spotting scope. This second version features two different magnification readings; 25-60x and 30-70x. This addition makes the TE-11WZ II compatible with the TSN-99/880/770 scopes, thanks to the two different magnification readings.
Optical Excellence
The TE-11WZ II contains 2XD-lenses to deliver images with outstanding sharpness, even at the maximum magnification. Chromatic aberration has been limited to the highest level due to the quality of the glass used within the eyepiece. Additionally, eye relief remains at a 17mm constant throughout the magnification range. The TE-11WZ II delivers a 20% wider field of view than other Kowa optics so that you can see more at any time.
Key Features
- 2XD-lenses for outstanding sharpness
- Limited chromatic aberration
- Two magnification markings for TSN scopes
- Exceptional field of range
Specification:
- Magnification: 25-60x (TSN-77 & TSN-88) / 30-70x (TSN-99)
- Subjective field of view (degree): 59-70
- Field of view at 1000m: 35-20m (1000yds /105-60ft)
- Exit Pupil Diameter: 3.3 - 1.4
- Relative Brightness: 10.9 - 2.0
- Twilight Factor: 51.4 - 78.6
- Eye Relief (mm): 17
FAQs
What spotting scopes is this compatible with?
The following scopes; TSN-99A Prominar 30-70X Zoom Kit (Angled), Kowa TSN-99S Prominar 30-70X Zoom kit (Straight), TSN-880 PROMINAR, TSN-770 PROMINAR series.
Why does the TE-11WZ II have two different magnification ranges?
This is because the spotting scopes that this eyepiece is compatible with have different focal lengths. Because the focal length of a scope dictates the magnification of the zoom eyepiece the TE-11WZ II has been marked with two different magnifications.
Which magnification should I read for which scope?
TSN-99 PROMINAR Series: 30-70x
TSN-880/770 PROMINAR Series: 25-60x
Have the optics changed from the original TE-11WZ?
Optically the TE-11WZ II is identical to the original model, still offering the same excellent standard that can be expected from Kowa.
