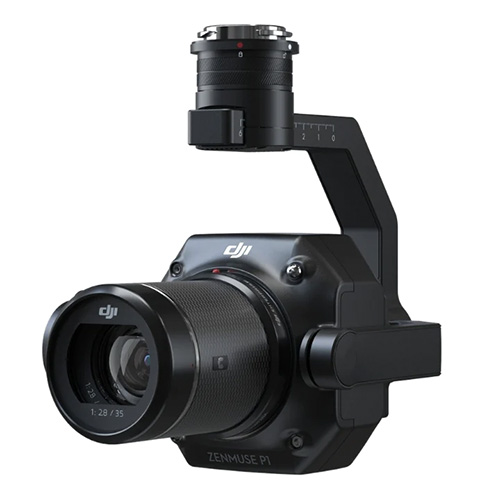

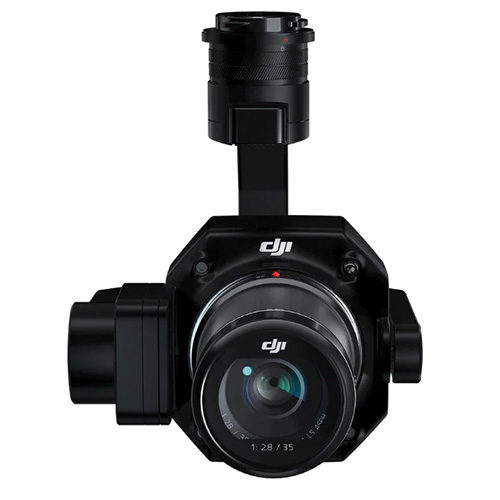

DJI Zenmuse P1
The DJI Zenmuse P1 is a 45MP full-frame sensor that allows you to attach compatible lenses onto a 3-axis stabilised gimbal allowing for effective and accurate delivery for photogrammetry flight missions. The P1 works with the DJI Matrice 300 RTK Drone and can be integrated with compatible lenses.
What is the DJI Zenmuse P1 used for?
The DJI Zenmuse P1 has many uses including;
- Topographic Mapping - Capture data that meet the 1:500 scale accuracy requirements without GCPs.
- Cadastral Surveying - Quickly generate centimetre-level accurate 3D reality models.
- AEC and Surveying - Manage the full project lifecycle with 2D and 3D drone data.
- Natural Resource Management - Measure, classify or determine the ownership of water bodies and forests.
- Geological Investigation - Safely gather millimetre-level accurate aerial data of geological hazard sites.
- Disaster Site Modelling - Gain real-time overviews of vast disaster-struck areas to help teams make critical decisions.
45MP full-frame sensor
The DJI Zenmuse P1 comes equipped with a 45MP full-frame, low-noise high-sensitivity sensor that allows you to take images every 0.7 s during the flight. The P1 offers accuracy without GCPs (3 cm horizontally / 5 cm vertically(1)) and it is possible to cover 3 km2(2) in a single flight.
Remarkable Accuracy
The Zenmuse P1 features a global mechanical shutter(3), a Shutter Speed of up to 1/2000 Seconds as well as the all-new TimeSync 2.0 system. This system aligns the camera, flight controller, RTK module, and gimbal at the microsecond level to allow users to capture centimetre-accurate data combined with the real-time position and orientation compensation technology.
Robust Versatility
The Zenmuse P1 allows you to create 2D, 3D and detailed models thanks to the integrated 3-axis gimbal. You can also mount the P1 with the DJI Zenmuse X7 DL 24mm F2.8 LS ASPH Lens*, DJI Zenmuse X7 DL 35mm F2.8 LS ASPH Lens and DJI Zenmuse X7 DL 50mm F2.8 LS ASPH Lens* and the Smart Oblique Capture feature.
*Sold separately
Smart Oblique Capture
The P1 allows you to cover 7.5 km2(4) in a single workday. The Smart Oblique Capture automatically rotates the gimbal to take photos at different angles and only images that are essential to the reconstruction will be taken at the edge of the flight area. This increases the efficiency of post-processing by 20%(5) to 50%(6).
Smart Data Management
It is easy to keep all of your mission data streamlined as the folders are automatically associated with the Mission Name and Mission Time. There is a centralised storage location that allows you to store photos, GNSS data, and TimeStamps.MRK files and the metadata on the images contains the camera’s intrinsic and extrinsic parameters and the status of RTK.
Mission Modes
The Zenmuse P1 also comes with the following mission modes;
- 2D Orthomosaic Mission - Generate orthomosaics without GCPs using the P1, perfect for medium to large-area operations.
- 3D Oblique Mission - Effortlessly acquire oblique images from multiple angles that meet 3D modelling requirements across industries such as urban planning and centimetre-level accurate cadastral surveys to serve 3D reality models and smart city planning.
- Detailed Modelling Mission - Acquire ultra-high resolution image data of vertical or slanted surfaces from a safe distance that faithfully recreates fine textures, structures, and features, for detailed reconstructions, geological surveys, heritage site conservation, hydraulic engineering, and more.
- Real-time Mapping Mission(7) - Gather geographic information of large areas in real-time using DJI Terra so that teams can make crucial decisions quickly on site.
Compatible with DJI Terra Software(7)
The Zenmuse P1 is compatible with the DJI Terra software to aid in post-processing. You can also check the data quality immediately after the flight by checking the position data and number of images acquired, as well as RTK status and positioning accuracy.
Key Features
- 45MP full-frame CMOS.
- Achieve 3cm horizontal accuracy and 5cm vertical accuracy with no ground control points (3cm GSD, with 75% front overlap ratio and 55% side overlap ratio)
- High efficiency: 3km² area coverage during a single flight (3cm GSD, with 75% front overlap ratio and 55% side overlap ratio)
- 3-axis stabilised gimbal with Smart Oblique Capture
- Mechanical Global Shutter (achieved by mechanical leaf shutter) - 1/2000s shutter speed
- TimeSync 2.0: Synchronise flight controller, RTK, gimbal, and camera within milliseconds
Click here for full product specifications >
(1) Using Mapping Mission at a GSD of 3 cm, with an 75% front overlap rate and a 55% side overlap rate.
(2) At a GSD of 3 cm, with a 75% front overlap rate and a 55% side overlap rate.
(3) The global shutter is achieved with a central leaf shutter.
(4) Using Smart Oblique Capture at a GSD of 3 cm, with an 80% front overlap rate and a 60% side overlap rate.
(5) Area mapped: 1.5 km2, flight altitude: 200 m
(6) Area mapped: 0.5 km2, flight altitude: 200 m
(7) Support coming soon
FAQ
What resolution stills can I take with the P1?
The P1 takes photos with a resolution of 8192 * 5460, or approximately 45 megapixels.
Which image/video formats are supported by P1?
Photos: JPEG, DNG, JPEG+DNG; Videos: MP4, MOV
Which lenses can I use with the P1?
The P1 supports the DJI Zenmuse X7 DL 24mm F2.8 LS ASPH Lens, DJI Zenmuse X7 DL 35mm F2.8 LS ASPH Lens and DJI Zenmuse X7 DL 50mm F2.8 LS ASPH Lens
