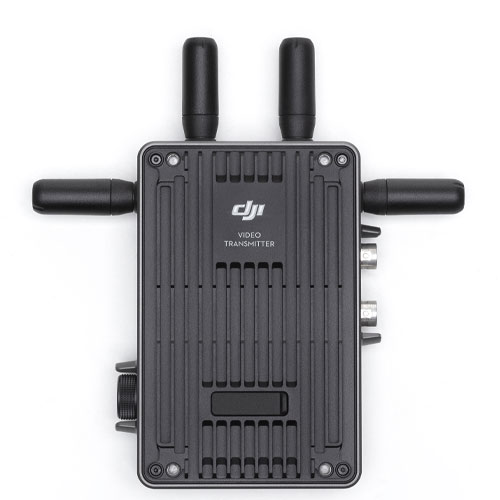

DJI Video Transmitter
DJI has designed their new DJI Video Transmitter in order to deliver an integrated solution, combining a video receiver, monitor, controller and recorder in one easy set-up. Featuring an amazing 6km/20,000ft on-ground transmission distance the DJI Video Transmitter offers crews on large sets a fantastic remote visual and audio monitoring experience. The DJI Video transmitter has been developed for integration with Ronin series products and DJI Master Wheels. Pair with the DJI High-Bright Remote Monitor (Sold Separately) for an efficient workflow.
Long-Distance HD Live Feed
Developed with the O3 Pro Video transmission technology, the DJI Video Transmitter is able to achieve up to 6km/20,000ft of transmission distance. The technology allows transmissions at 1080p/60fps at a max bit rate of 50Mbps, along with live audio monitoring at 16-bit 48 kHz.
End-to-End Ultra-Low Latency
Designed with the same chip solution as Ronin 4D, the DJI video transmitter and receiver have been explicitly optimized. Every link provides end-to-end ultra-low transmission latency. Making it ideal for use with cinema cameras like ALEXA Mini LF.
Up to 23 channel options
Thanks to the integration of the o3 Pro technology, DFS bands are added on top of the traditional 2.4 GHz and 5,8 GHz frequency bands. This provided a larger range of channel options, offering up to 23 options. Making it brilliant for professional crews, allowing for more compliant and interference-free transmission channels.
Seamless Auto frequency Hopping
Supporting triple-band automatic frequency hopping, the DJI Video Transmitter automatically scans the electromagnetic environment, looking for the best wireless channel. A built-in frequency sweeper lets you manually select the optimal channel. This helps to reduce interference between devices.
Enhanced Transmitter signal
Mount DJI’s High-Gain antennas (sold separately) to boost the range of the DJI Video Transmitter by 40%, this extended range is fantastic for large-scale productions and film sets.
Two transmission modes
The DJI Video Transmitter allows the DJI High-Bright Remote Monitor (Sold separately) to support one transmitter with multiple receivers for both video and audio feeds. Allowing for two transmission modes Control mode and Broadcast mode.
Control mode
Control mode delivers optimal transmission performance, this allows you to monitor from two receivers simultaneously, while the Ronin 2, RS 3 Pro and camera focus can be controlled remotely.
Broadcast mode
A larger crew, with multiple teams and departments, may require more access to a broad range of channels. Enabling Broadcast mode on top of Control mode allows access to an unlimited number of receivers.
Smooth, coordinated transmission
DJI’s Video Transmitter can operate with 20 or more transmitters sending signals to 20 or more monitors simultaneously. This allows for a smooth and coordinated transmission experience, which is difficult to achieve with other more traditional setups.
Integrated Design
DJI’s transmission system has been designed to integrate a DJI High-Bright Remote Monitor (sold separately) with a built-in receiver. This allows for maximum portability and an efficient setup, enabling you to set up and get started quickly.

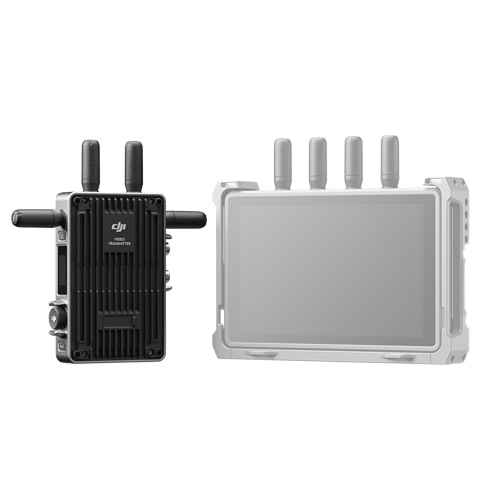

DJI High-Bright Remote Monitor*
Pairing the DJI Video transmitter unit with the DJI High-Bright Remote Monitor enables optimal performance. Equipped with a 7-inch wide gamut touchscreen, a brightness of up to 1,500 nits and a 1920x1200 resolution. Providing you with a fantastically clear touchscreen display. The screen display itself has a non-intrusive interface, showing details such as shooting parameters for seamless monitoring. As standard the remote monitor comes with a tempered glass screen protector and a professional monitor hood, ensuring that the colours seen on the screen are rich and true-to-life in all lighting conditions.
*Sold separately
Compatible with DJI Master Wheels and DJI Force Pro
Thanks to the remote monitor, when used with either the DJI Master Wheels or DJI Force Pro (sold separately) you can achieve a more advanced gimbal control when using the Ronin 2 or RS 3 Pro. The equipment will then transmit control signals directly through DJI transmission. In action to advance gimbal control, this also boosts the transmission performance and enhances signal range, stability and anti-interference capabilities.
Direct power supply by gimbal
Power the DJI Video Transmitter directly through the Ronin 2 or RS 3 Pro gimbal, simply attach it to the cold shoe mount on the bottom of the gimbal and power it without any additional batteries.
Multiple power Solutions
The Video Transmitter is compatible with the DJI WB37 Battery and can be used with the NP-F Battery Adapter, allowing you to use universal batteries. V-mount battery adapters can be mounted to the front or rear of the video transmitter via pogo pins on both the front and back of the video transmitter. This allows you to move freely, around a set.
P-TAP to DC-IN power option
Continuous power can be supplied to the video transmitter via a P-TAP to DC-in power cable. Providing a steady secure stream of power can be ideal for more stationary situations, allowing for a more dependable power supply.
Key features:
- Incorporates O3 Pro video transmission technology
- Ultra-low transmission latency
- 6KM/20,000ft on-ground transmission distance
- Directly powered via Gimbal
- Compatible with DJI WB37 Battery and NP-F Battery Adapter
- Supports triple-band automatic frequency hopping
- Built-in frequency sweeper
- Supports DFS frequency band
- AES 256-bit encryption algorithm
Click here to view full specifications>
What’s in the box?
- Video Transmitter x 1
- Ronin Video Transmission Antenna x 4
- WB37 Battery Adapter (TX) x 1
- NP-F Battery Adapter (TX) x 1
- USB-C Cable x 1
- SDI Cable x 1
- DJI DC Power Cable x 1
- DC to P-TAP Power Cable x 1
- USB-C to LEMO Power Cable x 1
- RS Gimbal Mounting Plate x 1
- Installation Toolkit x 1
FAQ
What is the DJI Video Transmitter compatible with?
The DJI Video Transmitter is compatible with the DJI High-Bright Remote Monitor, the DJI Ronin 2 and the DJI RS 3 Pro.
