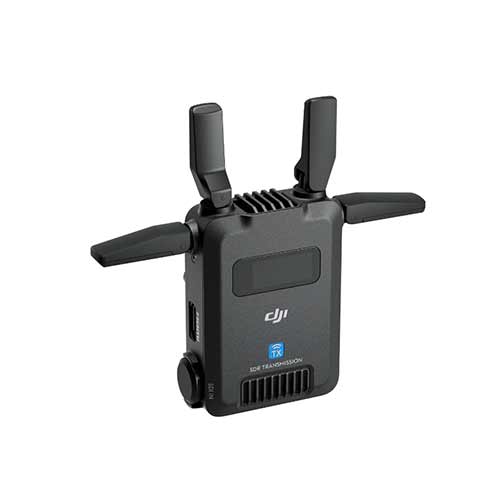

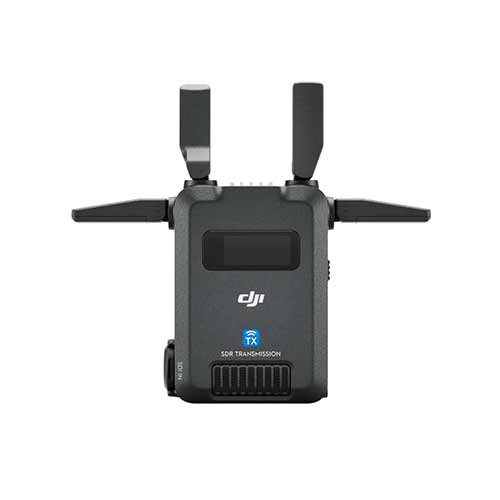

DJI SDR Transmission Transmitter
The DJI SDR Transmission Transmitter can be brought as an additional or spare transmitter for use with the DJI SDR Transmission system which has been designed to utilise both SDR and Wi-Fi video transmission modes, enabling enhanced stability, interference resistance and penetration capabilities.

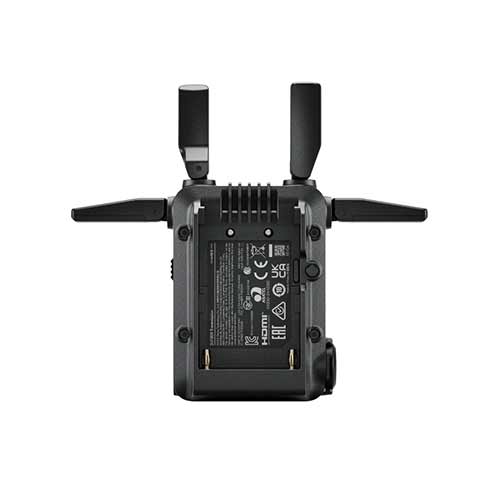

Multiple Ports
The DJI SDR Transmitter has been designed with multiple ports to allow for easy connection, including a 3.5mm stereo jack, HDMI Input port, SDI Input port and 2 USB-C ports. One USB-C port is dedicated to USB-C power and gimbal communication while the second is dedicated to USB-C firmware updates. The transmitter can allow you to have a direct connection to smartphones or tablets over Wi-Fi.
Supports High-Quality Video Input
The DJI SDR Transmission Transmitter can support up to 1080p/6-fps video in both the HDMI and SDI Input ports.
Versatile Power supply
The transmitter can be powered directly by a mounted gimbal, helping to eliminate separate batteries. Alternatively, the transmitter supports industry-standard NP-F batteries which provide a voltage ranging from 6.8 to 8.4V, it can also be powered through a standard PD protocol charger, with a USB-C power input rated at 9V and 2A.
Key Features:
- SDR Transmission
- Stable & Anti-Interference
- Strong Penetration
- Extended Transmission Distance
- High Bitrate
- High Image quality
- Unlimited Number of Receivers
Click to View DJI SDR Transmission specifications

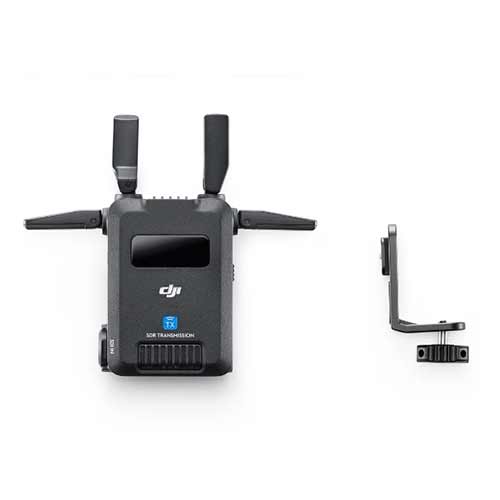

What’s in the box?
- DJI SDR Transmission Transmitter (TX)
- TX Gimbal Mounting Adapter Plate
FAQ
Does the DJI SDR Transmission Transmitter come with a receiver?
The DJI SDR Transmission Transmitter does not come with a receiver. It can be brought separately or in the DJI SDR Transmission Combo.
