DJI O4 Air Unit
DJI offer cutting-edge digital video transmission technology, featuring higher resolution, lower latency and extended range. A compact and lightweight design the DJI O4 Air Unit weighs only 8.2g and is compatible with drone frames 2 inches and below.
Improved FHD FPV Digital Video Transmission
The DJI O4 Air Unit offers a sleek single-antenna design and is equipped with the DJI O4 video transmission system, this improved system offers ultra-low latency at only 20ms, up to 10 kilometres of transmission reach and a 60Mbps Max video Transmission Bitrate. The system can automatically select the most stable frequency, allowing you to manage your drone confidently with precision.
High-Quality Live View & Video Recording
Enjoy high-quality 1080p/100fps H.265 live view and up to 4k/60fps video thanks to the DJI O4 Air Unit’s 1/2-inch CMOS 12 MP sensor.
Wide FOV
The DJI O4 Air has been designed with a wide 117.6° FOV, letting you capture wide-angle video footage.
Flexible Assembly
The DJI O4 Air unit can fit drone frames of 2 inches and smaller, perfectly suited to various creative flight scenarios.
Supports Canvas Mode
Enjoy full control over your display with supported Canvas Mode and Betaflight OSD settings, allowing you to customise the real-time data and layout display on your goggles screen.
Built-in storage
The DJI O4 Air Unit has been designed with up to 23GB of internal storage, providing plenty of memory to capture your cinematic aerial footage. The DJI O4 Air Unit does not support microSD Card expansion.
Key Features:
- FHD FPV Digital Video Transmission
- Up to 10km Transmission
- 1080p/100fps live view
- 4k/60fps video
- 1/2-inch CMOS Sensor
- 8.2g lightweight body
- Compatible with various goggles and remote controllers
Click to view DJI O4 Air Unit full specifications >

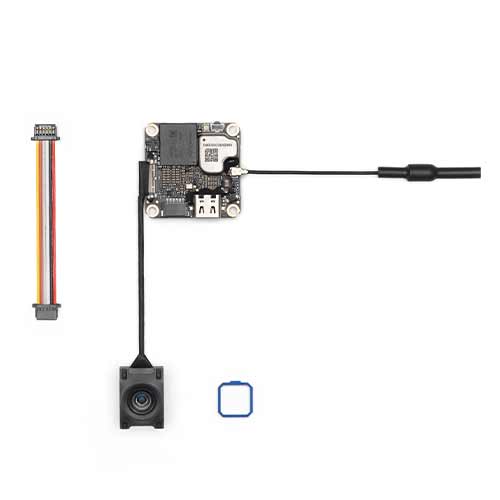

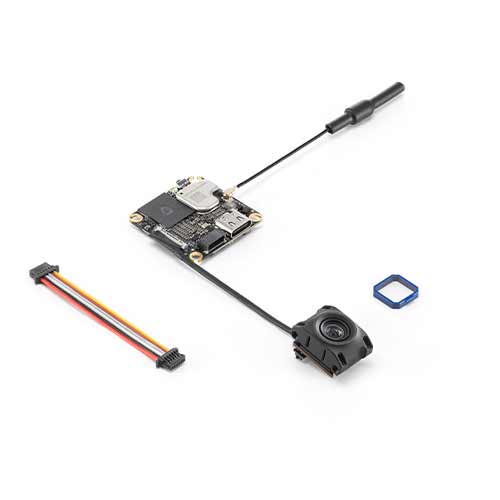

What’s in the box?
- DJI O4 Air Unit Camera Module x1
- DJI O4 Air Unit Transmission Module x1
- DJI O4 Air Unit Antenna x1
- DJI O4 Unit 3-in-1 cable x1
FAQ
Which DJI Goggles is the DJI O4 Air Unit compatible with?
The DJI O4 Air Unit is compatible with the DJI Goggles 3, DJI Goggles N3, DJI Goggles 2 and the DJI Goggles Integra.
Which DJI Remote Controllers are compatible with the DJI O4 Air Unit?
The DJI O4 Air Unit is compatible with the DJI FPV Remote Controller and the DJI FPV Remote Controller 2.
How much does the DJI O4 Air Unit weigh?
The DJI O4 Air Unit weighs only 8.2g and measures 30x30x6mm.
