DJI Matrice 4E (UK)
The DJI Matrice 4E has been designed with advanced features such as an AI computing platform, laser rangefinder and smart detection tools optimised for use in geospatial applications such as surveying and mapping, construction and mining.
Built-In AI Model
The DJI Matrice 4 features enhanced AI detection which can detect vehicles, vessels and subjects. The built-in AI system supports high-res grid photos and features powerful tracking capabilities.
Laser Range Finder
Capture real-time precise measurements with the Matrice 4’s Laser Range Finder through simple operations such as pinpoint, line drawing and area calculations. Allowing you to calculate things like the area of a wildfire. Enjoy enhanced collaboration and share info via the DJI Pilot QR code or FlightHub 2.
Compatible with DJI Pilot 2
The DJI Matrice can be paired with the DJI Pilot 2 and can highlight the centre position of the camera frame and the ground area observed. The surveyed area can be displayed on the map, this feature is useful during rescue operations in terrain without clear landmarks.
Auto-Generated Surveying Operation Report
The DJI Pilot 2 can automatically generate a survey quality report, providing comprehensive access to key information such as photo points, RTK status and photo parameters. Additional photos can be taken on-site if there are any anomalies, to avoid repeated trips.
Fusion Positioning
DJI’s RTK module comes standard within the Matrice 4 series. The DJI RTK supports the extended L5 frequency band and features a GNSS+Vision Fusion Positioning and Navigation System. This allows the return to the home point to be updated through visual positioning. Even without GNSS signals the Matrice 4 can complete a return to home process. This allows for rapid takeoff within 15 seconds during emergencies.
Two Advanced Tele Cameras
The DJI Matrice 4 uses two advanced tele cameras. The first is a 70mm Medium Tele camera with a 1/1.3” CMOS 48MP f2.8 ideal for medium-range inspection tasks, detecting screws and cracks during a powerline or bridge inspection from a distance of 10 meters. The second camera is a 168mm Tele Camera which features a 1/1.5” CMOS 48MP f2.8 camera, this camera can capture details from up to 250 meters. The Matrice 4E also has a 24mm wide-angle camera 4/3 CMOS 20MP f2.8-f11. These cameras have been carefully integrated into the DJI Matrice 4E, to help in surveying operations.
Upgraded Telephoto Stabilisation
Capture steady, clear images thanks to the upgraded telephoto stabilisation, making the foreground subjects stable and clear during telephoto shooting at 10x zoom or higher.
Electronic Dehazing
Improve the imaging clarity of the Matrice 4 in conditions such as smog or atmospheric humidity with the help of its electronic dehazing feature, which supports three modes, low, medium and high.
Excel in Low-Light Environments
The DJI Matrice 4 offers expert imaging even in low-light environments, featuring an upgraded night scene mode. This full-colour night vision system supports three modes and two levels of enhanced noise reduction. Paired with the Matrice 4 series large aperture cameras and intelligent low-light capabilities such as IR Cut Filter and NIR auxiliary light, enabling enhanced performance and operations during dusk and nighttime.
Enhanced Obstacle Avoidance
Six high-definition low-light fisheye vision sensors help to enhance visual low-light positioning and obstacle avoidance capabilities, allowing for intelligent rerouting and safe return in urban low-light environments.
Rapid 0.5-Second Interval Shooting
The DJI Matrice 4E is equipped with a 4/3 CMOS 20MP f2.8-f11 wide-angle 24mm camera which supports 0.5 second shooting in both orthophoto and oblique photography modes. With a mopping flight speed that can reach up to 21 meters per second, the Matrice 4E allows you to conduct high-speed aerial surveying from multiple angles.
Multi-Directional Capture
Capture multiple shots in a single flight with the new 5-directional oblique capture system, which lets the gimbal intelligently rotate and shoot at multiple angles based on the survey area. The Matrice 4E further supports 3-directional ortho capture, enabling lateral capturing while performing ortho collection tasks. Complete mapping operations for an area of 2.8 square kilometres in a single flight.
Smart 3D Capture
Capture and create a rough model of your surveyed area on the remote controller thanks to the DJI Matrice 4E Smart 3D Capture ability. The Matrice 4E can use this information and rough model to quickly generate precise mapping routes close to a structures surface, completing details measurements and modelling of irregular buildings. The 4E supports displaying virtual space routes and waypoint photos for smart 3D capture, letting you assess specific routes flight safety and coverage area
Distortion Correction
The DJI Matrice 4E’s wide-angle camera is calibrated before leaving the factory and features distortion correction 2.0, which provides high-precision i-camera distortion correction with residual distortion less than 2 pixels.
Auto-Generated Surveying Operation Report
The DJI Pilot 2 can automatically generate a survey quality report, providing comprehensive access to key information such as photo points, RTK status and photo parameters. Additional photos can be taken on-site if there are any anomalies, to avoid repeated trips.
Intelligent Guidance Unobstructed Flight
The DJI RC Plus 2 Enterprise remote controller can load terrain elevation maps and preload detailed maps when connected to the internet. Allowing for automatic path planning for obstacle avoidance, perfect for scenarios such as flying at night or through mountainous areas. The drone has a direction vision assist view system along with downward vision, providing comprehensive visibility for enhanced protection.
Video Transmission
The Matrice 4 series features an O4 Enterprise video transmission system, designed with an 8-antenna system on the Matrice 4 and a high-gain antenna in the remote controller. This transmission system can achieve up to 25 kilometres in transmission range, and image transmission with a download bandwidth of 20MB/s, ensuring more precise and stable images of route uploads and material downloads. The DJI Matrice 4 series also supports an optional DJI Cellular Dongle 2, which utilises 4G image transmission in conjunction with the aircraft’s antenna to further enhance signal stability.
Key Features:
- Advanced capabilities
- Smart detection
- Laser range finder
- Medium tele camera
- Tele camera
- 48MP
- Smart 3D Capture
- Electronic Dehazing
- 0.5-Second Interval Shooting
Click to view DJI Matrice 4E full specifications >

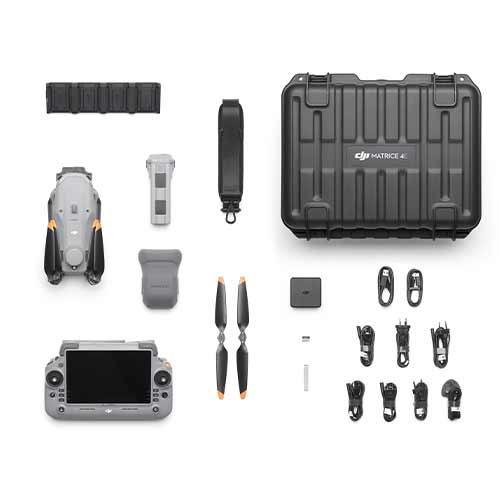

What’s in the box?
- DJI Matrice 4E x1
- DJ RC Plus 2 Enterprise Edition x1
- DJI Matrice 4 Series Battery
