Celestron NexImage 5 Solar System Imager (5MP)
Capture the stars in high-resolution with the Celestron NexImage 5 Solar System Imager. The 5MP colour sensor works with almost any 1.25” telescope to bring out tremendous detail of the planets, stars and astronomical anomalies.
5 Mega Pixel Colour Sensor
Take high-resolution 5-megapixel images with almost any telescope. The NexImage 5 Imager works with the included software package to bring out incredible detail that rivals those taken with much more expensive astronomical cameras. The System Imager records data in full colour with ON Semiconductor’s breakthrough low-noise CMOS imaging technology that dramatically reduces the image noise levels.
Control Your Images
Using the included iCap software you can manually adjust the gain, contrast, exposure time, frame rate and colour saturation using your PC. With this level of control, you can tailor the camera to each individual star or viewing environment for the best results every time.
Image Stacking
Take stacked images by recording a short video that the included RegiStax software analyses each frame of. The software automatically filters through the frames, discarding those of low quality, the remaining frames are layered on top of each other to create a high-quality image with maximum brightness, clarity, colour and detail.
Works in Light-Polluted Areas
The NexImage 5 Solar System even works in areas with relatively high light pollution. If you can see it in the sky then NexImage can photograph it.

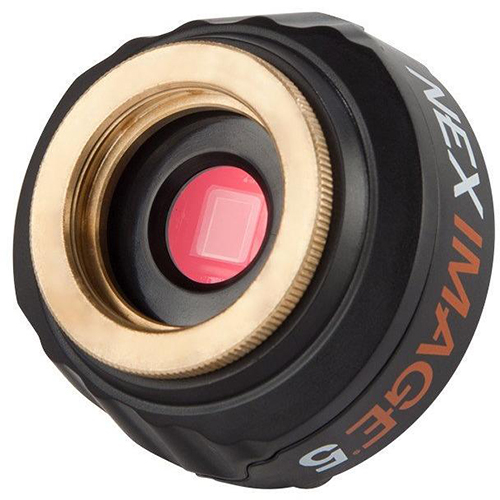

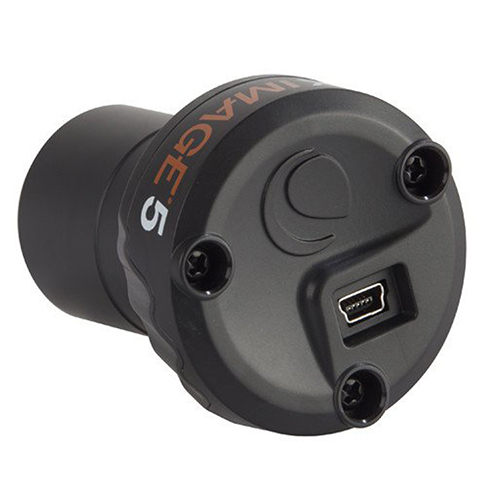

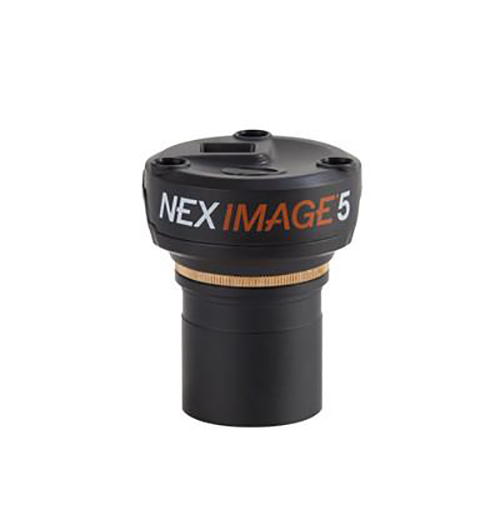

Machined 1.25” Aluminium Body

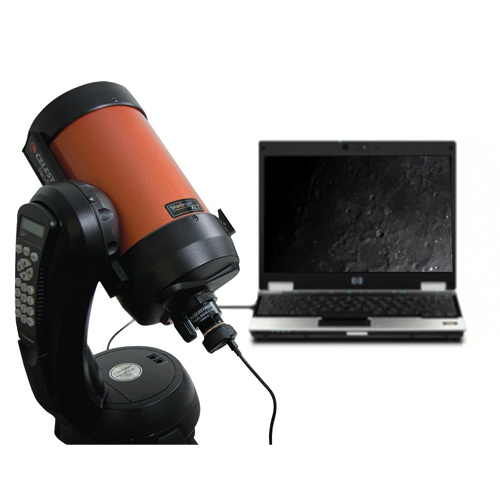

The NexImage 5 is built out of machined aluminium that is lightweight but durable. With its 1.25” adapter barrel with C-threads, it can connect to almost any telescope, and can be used with standard 1.25” eyepiece filters.
Key Features
- 5MP camera for telescopes
- Easy to use
- Image stacking for highest resolution
- Breakthrough low-noise CMOS technology
- PC software included
- View and capture live video
- Manually adjust settings
- Machined aluminium 1.25” adapter barrel
View full specifications here >
What’s in the box?
- 1x NexImage 5 Camera Body
- 1x 1.25” Nosepiece
- 1x Software CD
- 1x USB 2.0 Cable
- 1x Instruction Manual
Want to learn more?
Learn Astronomy Lingo: The Essential Astronomy Glossary
FAQs
Which telescope is this best paired with?
The NexImage 5 will work with almost any 1.25” telescope. For a perfect starter set-up, why not combine the NexImage 5 with the NexStar 5SE Telescope.
Should I buy the NexImage 5 or NexImage 10?
The two Solar System Imagers have their advantages, both are great for getting started in lunar, solar, and planetary imaging. Here are some of their main differences to help you choose which is right for you.
|
NexImage 10 |
NexImage 5 |
|
|
USB Power |
High-speed USB 3.0, cable 10' long |
USB 2.0, cable 5' long |
|
Imaging Sensor |
ON Semi MT9J003 CMOS |
ON Semi MT9P031 CMOS |
|
Frames per Second |
Up to 94.4 (6.9 at full frame) |
Up to 52.4 (6.0 at full frame) |
|
Colour or Monochrome |
Colour |
Colour |
|
Camera Resolutions (Px) |
3872 x 2764 |
2592 x 1944 |
|
Number of Pixels |
10.7 MP |
5.0 MP |
|
Sensor Size |
6.4mm x 4.6mm |
5.7mm x 4.28mm |
|
Operating environment |
-40°C to 40°C |
-30°C to 70°C |
|
Software Compatibility |
iCap, IC Capture, DirectShow, oaCapture |
iCap, IC Capture, DirectShow |
I want to photograph using my DSLR camera, is this what I need?
If you are looking to use your DSLR or SLR camera then you need a T-Adapter and T-Ring.
