Celestron NexImage 10 Solar System Colour Imager (10MP)
Capture the stars in incredible high 10MP resolution with the NexImage 10 Solar System Colour Imager. This colour sensor works with almost any 1.25” telescope to yield tremendous planetary detail.

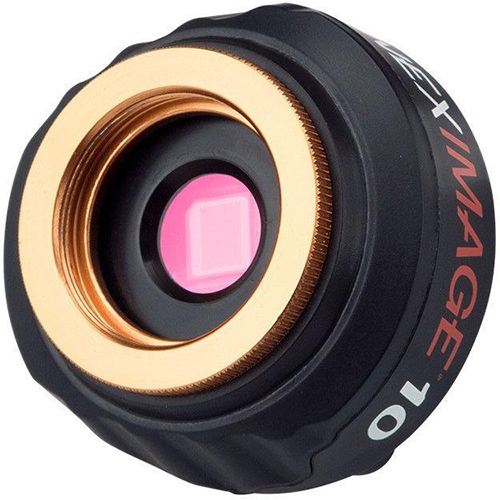

10 Mega Pixel Colour Sensor
Take high-resolution 10-megapixel images with almost any telescope. The NexImage 10 Imager works with the included software package to bring out incredible detail that rivals those taken with much more expensive astronomical cameras. The System Imager records data in full colour with ON Semiconductor’s breakthrough low-noise CMOS imaging technology that dramatically reduces the image noise levels.
Incredible Detail
In addition, the 10.7 million pixels are superbly small, measuring just 1.67µm so that even telescopes with shorter focal lengths can still produce tremendously detailed planetary images.
Control Your Images
Using the included iCap software you can manually adjust the gain, contrast, exposure time, frame rate and colour saturation using your PC. With this level of control, you can tailor the camera to each individual star or viewing environment for the best results every time.
Image Stacking
Take stacked images by recording a short video that the included RegiStax software analyses each frame of. The software automatically filters through the frames, discarding those of low quality, the remaining frames are layered on top of each other to create a high-quality image with maximum brightness, clarity, colour and detail.
Works in Light-Polluted Areas
The NexImage 10 Solar System even works in areas with relatively high light pollution. If you can see it in the sky then NexImage can photograph it.

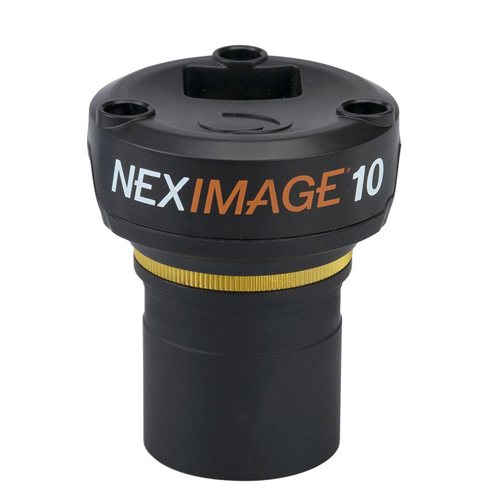

Machined 1.25” Aluminium Body
The NexImage 10 is built out of machined aluminium that is lightweight but durable. With its 1.25” adapter barrel with C-threads, it can connect to almost any telescope, and can be used with standard 1.25” eyepiece filters.
Key Features
- 10MP camera for telescopes
- Easy to use
- Image stacking for highest resolution
- Live video for quick focusing
- Incredible detail
- PC software included
- Manually adjust settings
- Machined 1.25” adapter barrel
View full specifications here >
What’s in the box?
- 1x NexImage 10 camera body

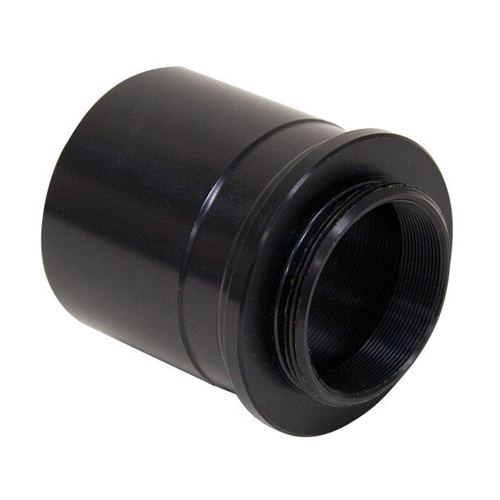

- 1x 1.25” nosepiece
- 1x Software CD

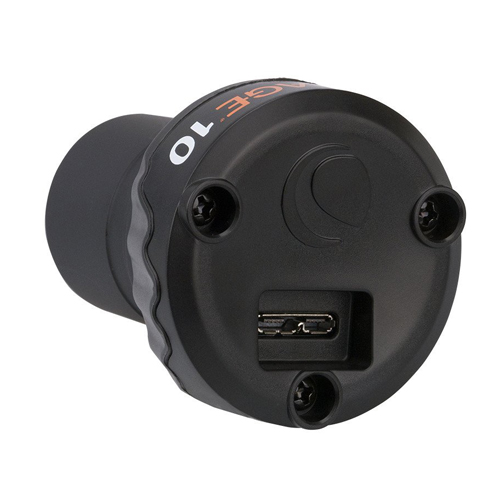

- 1x USB 3.0 cable
- 1x Instruction manual
Want to learn more?
Learn Astronomy Lingo: The Essential Astronomy Glossary
FAQs
Which telescope is this best paired with?

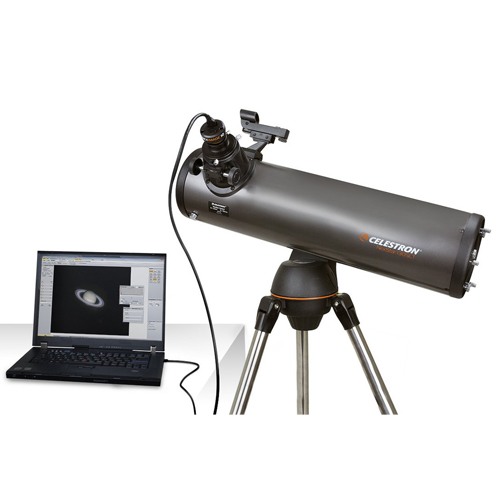

The NexImage 10 will work with almost any 1.25” telescope. For a perfect starter set-up, why not combine the NexImage 10 with the NexStar 5SE Telescope.
Should I buy the NexImage 5 or NexImage 10?
The two Solar System Imagers have their advantages, both are great for getting started in lunar, solar, and planetary imaging. Here are some of their main differences to help you choose which is right for you.
|
NexImage 10 |
NexImage 5 |
|
|
USB Power |
High-speed USB 3.0, cable 10' long |
USB 2.0, cable 5' long |
|
Imaging Sensor |
ON Semi MT9J003 CMOS |
ON Semi MT9P031 CMOS |
|
Frames per Second |
Up to 94.4 (6.9 at full frame) |
Up to 52.4 (6.0 at full frame) |
|
Colour or Monochrome |
Colour |
Colour |
|
Camera Resolutions (Px) |
3872 x 2764 |
2592 x 1944 |
|
Number of Pixels |
10.7 MP |
5.0 MP |
|
Sensor Size |
6.4mm x 4.6mm |
5.7mm x 4.28mm |
|
Operating environment |
-40°C to 40°C |
-30°C to 70°C |
|
Software Compatibility |
iCap, IC Capture, DirectShow, oaCapture |
iCap, IC Capture, DirectShow |
I want to photograph using my DSLR camera, is this what I need?
If you are looking to use your DSLR or SLR camera then you need a T-Adapter and T-Ring.
