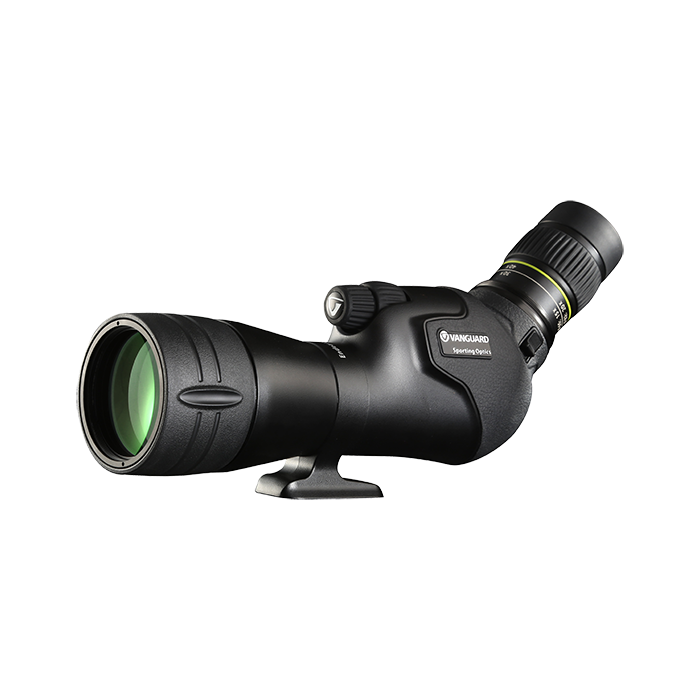

Vanguard Endeavor HD 65A Spotting Scope

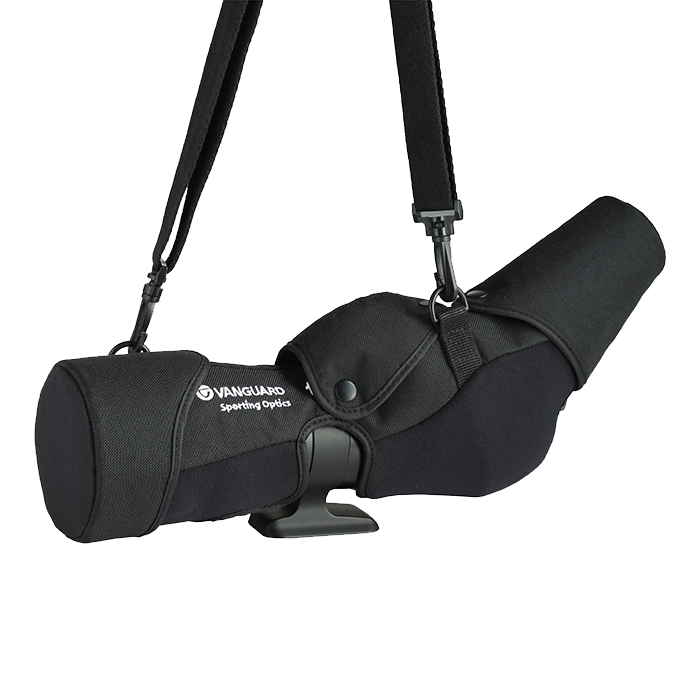

Endeavor HD Spotting Scope is the most advanced piece of optical equipment Vanguard has ever produced. The optical system employs extra-low dispersion glass (ED) to ensure accurate color rendition and virtually eliminate color fringing. The lenses are all fully multi-coated to ensure optimum light transmission and feature a phase-coated BAK4 roof prism. Endeavor 65A comes with a 65mm objective lens and angled eyepiece with 15-45x zoom magnification. It features an extendable rubber covered eyecup and boasts impressive eye relief even at the highest zoom settings. It also provides a very impressive field of view. A built-in sunshield is included to eliminate glare in direct sunlight and it includes a padded raincoat with sling for carry and protection. Endeavor HD is also equipped with fine and coarse focusing wheels for quick and precision fine tuning adjustments. The Endeavor HD mounts directly to Vanguard tripod heads (and others) that are equipped with the universal mounting plate without the use of a quick shoe.
-
Optical Performance
- 15-45x magnification, 65mm objective
- Extra-low dispersion glass elements, BaK4 prisms
- Fully multicoated optics
- Field of view @1000m = 48 - 23
- Near focus(m) = 4.50 - 5.50 -
Use and Handling
- Angled view eyepiece is inclined 45° from the objective lens

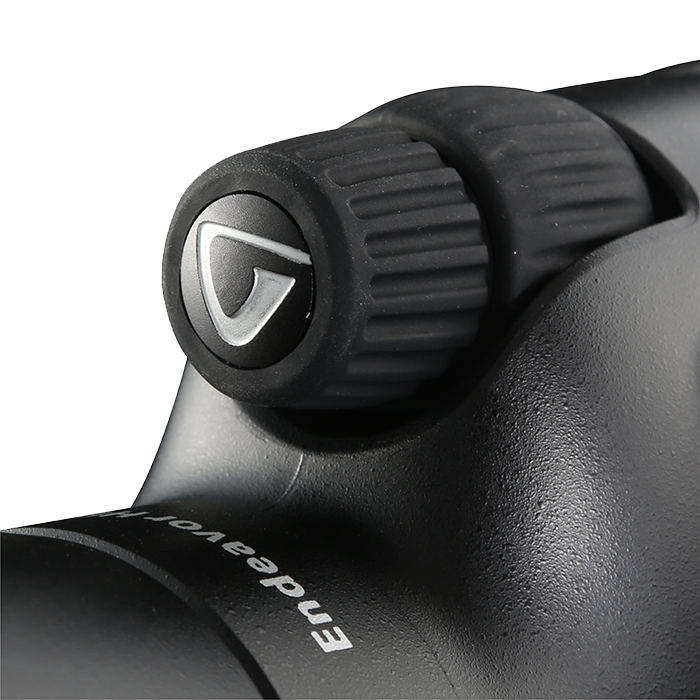

- Separate coarse / fine focus controls

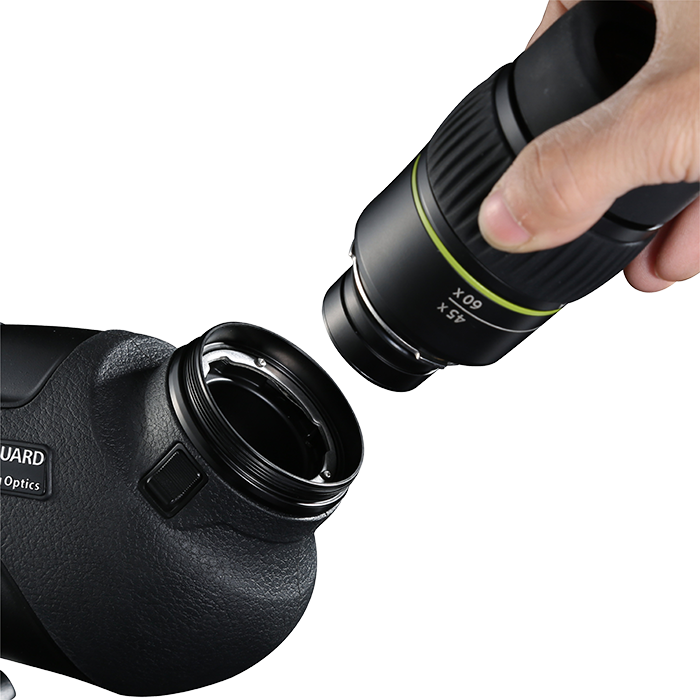

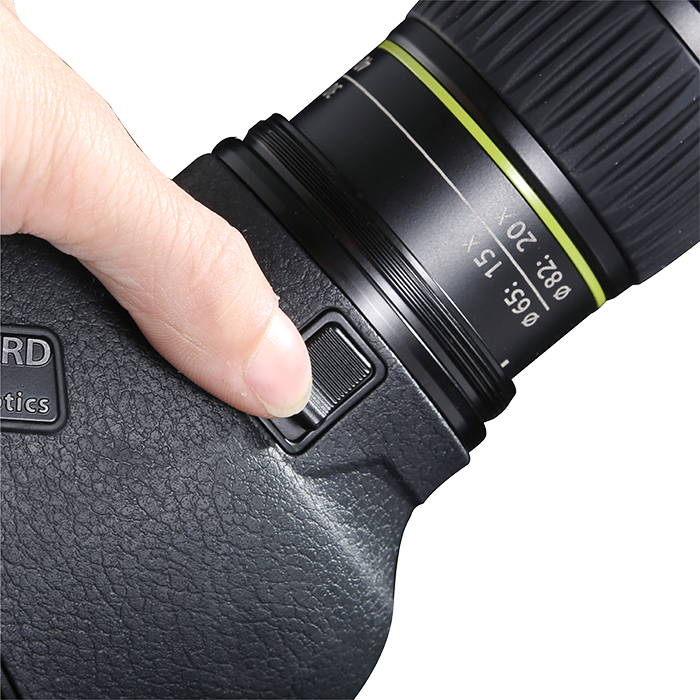

- Interchangeable eyepiece mount
- Tripod mounting foot -
Construction Details
- Nitrogen-filled fogproof / waterproof housing
- Magnesium body with textured rubber armor
- Built-in sunshield
Specifications
| BODY MATERIAL | Magnesium alloy |
|---|---|
| DIAMETER OF OBJECTIVES | 65mm |
| DIMENSIONS (L X W) | 345 x 180 mm |
| EYE CUP | Twist out |
| EYE RELIEF (MM) | 19.0 ~ 20.0 |
| FIELD OF VIEW @1000M | 48 ~ 23 |
| FOCUS SYSTEM | Center focus |
| LENS COATING | Fully multi coated |
| NEAR FOCUS (M) | 4.50 ~ 5.50 |
| OCULAR ADJUSTMENT | ± 0 |
| PHASE COATING | YES |
| POWER | 15 ~ 45 |
| PRISM TYPE | BaK4 prism |
| RELATIVE BRIGHTNESS | 18.7~2 |
| TWILIGHT FACTOR | 31.2~54 |
| VIEW ANGLE | 2.7 ~ 1.3 |
| WATERPROOF | Yes |
| WEIGHT (OZ) | 51.1 |
