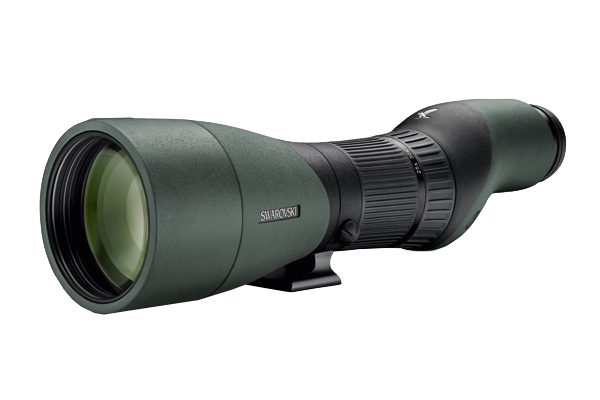

Swarovski ATX / STX 30-70x95
The perfect frontiersman
There’s never been anything like it: a spotting scope with such outstanding detail resolution and up to 70x magnification. This even pushes optical tests to their limits. Despite the 95-mm objective lens, this is a slim spotting scope weighing in at just 2 kilograms (75 oz).
In a nutshell, it ticks all the boxes for any birder wanting to discover an albatross gliding past an oceanic headland.
|
Contrast right up to the edgeSWAROVISION Field FlattenerThis type of image definition has never been achieved before in any other spotting scope, thanks to the field flattener lenses creating a virtually flat image. Even the finest structures are reproduced with razor-sharp clarity right up to the edge with no need for constant refocusing. The result: every detail is instantly captured, producing a perfect image without any distortions. |
 |
Maximum contrastincluding HD opticsA highly innovative optics design combined with fluoride- containing HD lenses minimise interfering colour fringing. This enables maximum colour fidelity and leads to a significant improvement in resolution and contrast. The result: an even more lifelike, contrast-rich image. |
 |
A complete viewLarge field of view and high zoom rangeNothing escapes you. You have your eyes trained on a flock of dunlins, but you catch something at the edge of the picture. A rarity? Thanks to their wide field of view, the ATX/STX spotting scopes provide you with a broader, more exciting platform for your viewing experience. In spite of their high zoom range, the new generation of spotting scopes offers a large field of view. This allows you to achieve optimum magnification and detail recognition and also makes it extremely easy for you to search for and find objects, especially if they are in motion. |
 |
Eye relief plusLarge field of view even for spectacle wearersSWAROVISION features a long eye relief and the removable twist-in eyecup is individually adjustable. The result: even spectacle wearers can enjoy a large field of view, not to mention the inimitable edge sharpness. An additional eyecup has been specially developed for spectacle wearers to further increase viewing comfort. |
 |
Maximum colour fidelityOptimised coatingsThe enhanced lens and prism coatings (SWARODUR & SWAROTOP) give noticeably better colour reproduction combined with even greater transmission. SWAROCLEAN coatings on the outer lens surfaces create a non-stick effect, making it easier to clean. The result: even more impressive observing experiences, even in low light. |
 |
Ingenious System
The new modular design offers previously unimagined flexibility and you are free to choose the perfect solution as the situation dictates. In collaboration with experts we have developed digiscoping adapters that open up a new realm of ways in which to observe and share the most beautiful moments.
Perfectly designed down to the smallest detail, you will be equipped for any situation.
Just one handWhen every second counts. Imagine a plover flitting over the shore one minute and taking off into the sky the next. The ATX/STX spotting scopes ensure that you are prepared for moments like this. This is because the new position of the zoom ring, which is now directly behind the focusing ring, makes it easier to handle. It means that you can zoom and focus with one hand, while steering the spotting scopes direction with the other. This completely new ergonomic design offers a crucial benefit for digiscopers in particular. They can now use the camera quickly, easily and accurately with one hand, while the other concentrates on zoom and focus. |
 |
Easy to transportNot a gram too heavy for top optical performance. Size and weight is the name of the game for all those who like to travel or spend long days in the field. The ATX/STX series means that bulky spotting scopes that are difficult to pack and heavy to carry are a thing of the past. The modular design enables you to store the objective and eyepiece modules separately and the smaller dimensions also mean that you can easily and safely store individual modules in your luggage. |
 |
| Technical data | ||||
|---|---|---|---|---|
| ATX/STX 25-60x65 | ATX/STX 25-60x85 | ATX/STX 25-70x95 | ||
| Ø65mm | Ø85mm | Ø95mm | ||
| Magnification | 25-60x | 25-60x | 30-70x | |
| Effective objective lens diameter (mm) | 65 | 85 | 95 | |
| Exit pupil diameter (mm) | 2,6-1,1 | 3,4-1,4 | 3,2-1,4 | |
| Exit pupil diameter (mm) | 20 | 20 | 20 | |
| Field of view (m/1000 m / ft/1000 yds) | 124-68 ft 41-23 m |
124-68 ft 41-23 m |
104-57 ft 35-19 m |
|
| Field of view (degrees) | 2,37-1,30 | 2,37-1,30 | 1,98-1,09 | |
| Field of view for spectacle wearers (degrees) (mit Spezialaugenmuschel*) |
2,37-1,1 (2,37-1,30) |
2,37-1,3 (2,37-1,30) |
1,98-1,0 (1,98-1,09) |
|
| Field of view, apparent (degrees) | 57-71 | 57-71 | 57-71 | |
| Shortest focusing distance (m / ft) | 6.91 ft1) 2,11 m1) |
11.8 ft 3,6 m |
15.7 ft 4,8 m |
|
| Diopter correction at ∞ (dpt) | > 5 | > 5 | > 5 | |
| Light transmission (%) Gesamtprodukt | 86 | 86 | 86 | |
| Objective filter thread | M 67 x 0,75 | M 87 x 0,75 | M 97 x 0,75 | |
| Length approx. (mm/in)* | Angled view | 13.3 in 339 mm |
14.6 in 372 mm |
16.8 in 426 mm |
| Straight view | 14.4 in 367 mm |
15.7 in 400 mm |
17.9 in 454 mm |
|
| Weight (g / oz) | Angled view | 55.9 oz 1585 g |
67.4 oz 1910 g |
75.8 oz 2150 g |
| Straight view | 57.8 oz 1640 g |
69.3 oz 1965 g |
77.8 oz 2205 g |
|
| Focal length with TLS APO* (mm) | 750-1800 | 750-1800 | 900-2100 | |
| Functional temperature | -13 °F to +131 °F (-25 °C / +55 °C) | |||
| Storage temperature | -22 °F to +158 °F (-30 °C / +70 °C) | |||
| Submersion tightness | 4 m (13 ft) water depth (filled with nitrogen) | |||
| * available from specialist retailers, 1)Perfect for Macro digiscoping | ||||
