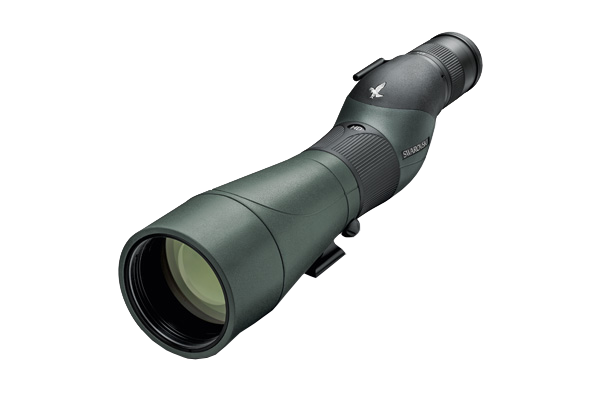

Swarovski ATS STS 80 HD Spotting Scopes (Body Only)
The ATS/STS 80 (HD) observation telescopes set the highest standards among telescopes in this category. Even with the easy-to-handle fully rubberized armouring, the ATA/STS 80 (HD) are by far the lightest of the larger observation telescopes. Thanks to a recalculated optical system, they offer a precise observation of detail, optimum edge-to-edge images and almost 100 per cent colour fidelity with an extremely wide field of view, thereby achieving a revolutionary image quality.
The integrated objective lens protection stops glare and diffuses light as well as protects against rain and snow. The scope is very lightweight at only 1.100 g (38.8 oz), despite the fully rubberised armouring, making it easy to handle even in cold weather. Features a tilting tripod ring (ATS 65/ATS 65 HD models only) for setting to the preferred observation position. The standardized foot fits Swarovski tripods without an additional plate or all tripods with 1/4" and 3/8" threads. The scope also has an internal focus for dustproof and watertight qualities and has no fogging thanks to nitrogen filling, protected against infestation of fungus. An easy-grip ergonomically-positioned focusing ring with larger grooves for quick and precise focusing.
Key features
- 80mm lens diameter
- High colour fidelity
- Wide field-of-view
- Extremely light, but very sturdy light alloy housing
- Integrated objective lens protection
- Rubber armouring for easy grip
- Tilted tripod ring
- Nitrogen filling to stop lens fog
Specifications
Functional temperature: -20 to +55° C (-4 to +131° F)
Storage temperature: -30 to + 70° C (-22 to +158° F)
Submersion tightness: 4 m (13 ft) (filled with nitrogen)
Objective lens focal length: 460 mm (18.11 in)
| ATS 80 ATS 80 HD |
STS 80 STS 80 HD |
Eyepiece 20xSW |
Eyepiece 30xSW |
Eyepiece 45xSW |
Eyepiece 20-60xS |
|
| Magnification | - | - | 20x | 30x | 45x | 20-60x |
| Objective lens diameter (mm) | 80 | 80 | - | - | - | - |
| Objective lens diameter (in) | 3.15 | 3.15 | - | - | - | - |
| Exit pupil, diameter (mm) | - | - | 4.0 | 2.7 | 1.8 | 4-1.3 |
| Exit pupil, diameter (in) | - | - | 0.16 | 0.11 | 0.07 | 0.16-0.05 |
| Eye relief (mm) | - | - | 17 | 20 | 18 | 17 |
| Eye relief (in) | - | - | 0.67 | 0.79 | 0.71 | 0.67 |
| Field of view, real (m/100 m) | - | - | 60 | 42 | 28 | 36-20 |
| Field of view, real (ft/1000 yds) | - | - | 180 | 120 | 84 | 108-60 |
| Field of view, real (degree) | - | - | 3.44 | 2.4 | 1.6 | 2.06-1.14 |
| Field of view, apparent (degree) | - | - | 66 | 66 | 66 | 40-65 |
| Shortest focusing distance (m) | 5 | 5 | - | - | - | - |
| Shortest focusing distance (ft) | 16 | 16 | - | - | - | - |
| Diopter correction at 8 (dpt) | 5 | 5 | - | - | - | - |
| Twilight factor (DIN 58388) | - | - | 40 | 49 | 60 | 40-69 |
| Objective filter thread | M 82 x 0.75 | M 82 x 0.75 | - | - | - | - |
| Length, approx. (mm) | 355 | 335 | 70 | 73 | 78 | 86 |
| Length, approx. (in) | 14.0 | 13.2 | 2.80 | 2.9 | 3.1 | 3.4 |
| Weight approx. (g) | 1300 / HD 1350 |
1280 / HD 1330 |
220 | 250 | 260 | 260 |
| Weight approx. (oz) | 45.9 / HD 47.6 |
45.2 / HD 46.9 |
7.8 | 8.8 | 9.2 | 9.2 |
