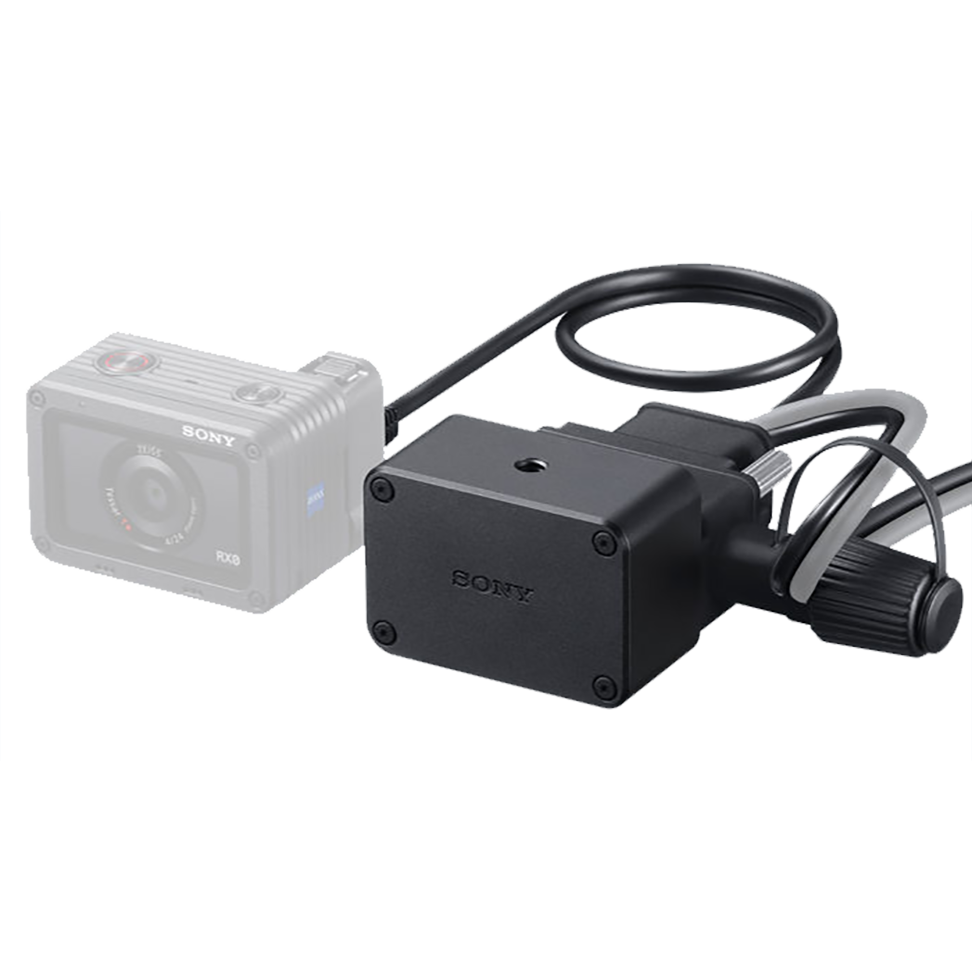

Sony Camera Control Box CCB-WD1
Compact Camera Control Box accessory brings power and connectivity to match and maximise infinite multi-camera shooting possibilities. Equipped for comprehensive remote camera control, image file management, and precision video sync, each Camera-and-Box pair is connected with your PC — to open new realms of movie imagination. Check out a short video below shot on the Sony RX0 in combination with the New camera control box -
Open new possibilities in multi-camera imagination
Connect each Camera Control Box and camera — and multiple pairs of Camera-and-Box units — to your PC via an Ethernet switching hub for powerful multi-camera command. Then control live preview and fast file transfer to your PC, adjust camera settings and shooting modes, and get capture control for both still images and movies. Choose operation of individual or multiple cameras to change settings.
Wire each Camera-and-Box pair for power, preview, and control
Connect the single USB MULTI between Camera Control Box and your camera for PC control, preview, and data transfer. Also use the supplied AC adaptor or a mobile USB battery for convenient power to a Box and linked camera via the same USB MULTI connection.
- IP network utilisation for system flexibility
Since an IP address can be assigned to each Camera Control Box unit, you can control cameras located in remote areas. The wired LAN connection lets you smoothly transfer image files3 to your PC for viewing and management as needed. This greatly enhances the flexibility and accuracy of multi-camera shooting and image handling. - Precision video sync support
Video sync with frame-by-frame precision is available for multi-camera movie shooting. This feature is especially convenient in sophisticated movie production — for instance, when stitching together video footage shot by multiple cameras into a 360° movie. - Efficient centralised image data management
The fast network interface lets you transfer images from the camera card directly to your PC, immediately after shooting.3 Assignable camera and file naming makes data management simple, even for multi-camera shoots, so you can prevent accidental overwriting.
Specification:
Size & Weight
- DIMENSIONS (W X H X D)
- Approx. W 59.0mm X H 40.5mm X D 29.8mm (2 3/8inches X 1 5/8inches X 1 3/16inches)
- WEIGHT
- Approx. 90 g (3.2 oz) (main unit only)
Power
- POWER SOURCE
- DC5.0V, 1500mA (supplied AC Adaptor)
Interface
- INPUT / OUTPUT
- Multi/Micro USB Terminal, Hi-Speed USB (USB2.0), LAN Terminal
Others
- OPERATING TEMPERATURE
- 0℃ to +40℃ (32°F to 104°F)

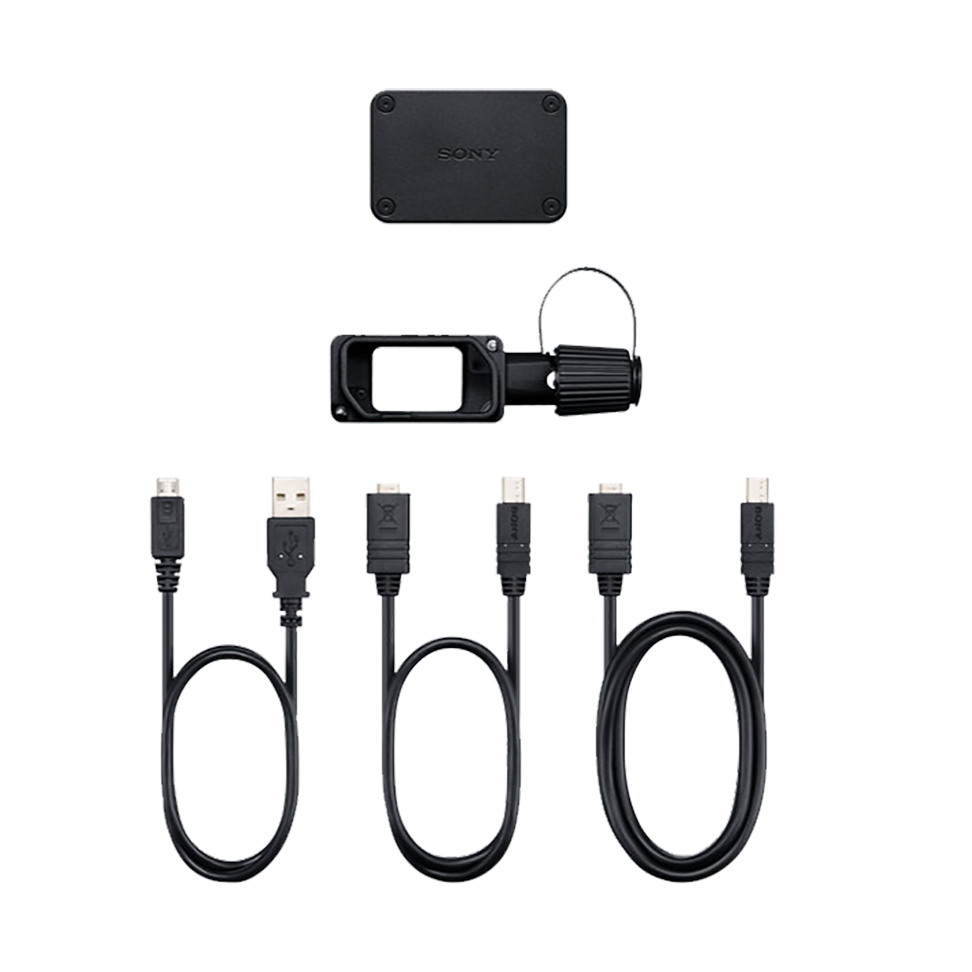

What's In The Box
- AC Adaptor AC-UUE12 (1)
- Micro USB cable (1)
- Cable protector (1)
- Multi terminal connecting cable (2) (0.4m/2.0m, 1.31ft/6.56ft)
