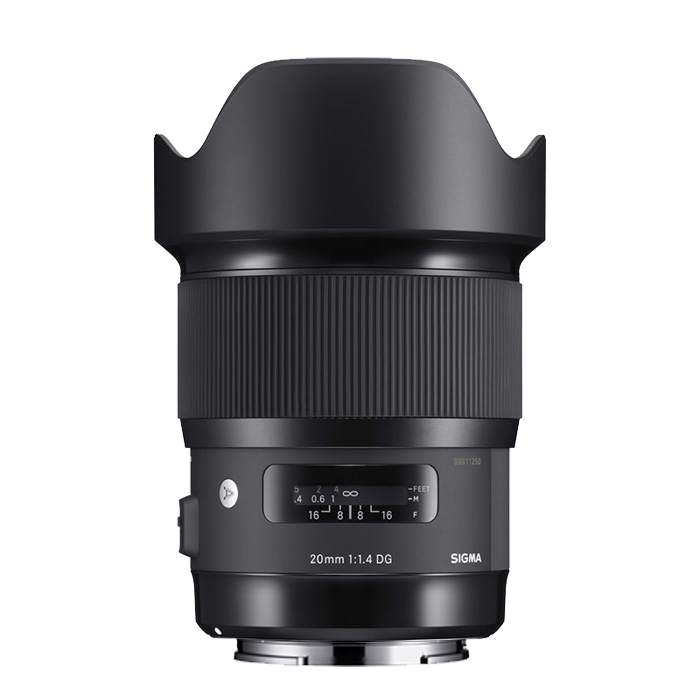

Sigma 20mm F1.4 DG HSM Art Lens - L Mount
Incredible rendering performance delivers unprecedented visual experiences. Enjoy enhanced control of light and composition.
The 20mm is one of 11 prime lenses for the L-Mount system by Panasonic and Leica. These L-Mount series lenses have achieved high-speed AF and are fully compatible with AF-C mode, in-camera image stabilization, and in-camera aberration correction.
Incredible rendering performance delivers unprecedented visual experiences. Enjoy enhanced control of light and composition.
Sigma has extensive experience in leveraging its advanced design capabilities and leading-edge technologies to craft large-aperture prime lenses that bring out the full potential of ultra-high-megapixel DSLRs. As its latest achievement in this category, SIGMA has created an ultra-wide-angle lens with F1.4 brightness. With a focal length of 20mm and F1.4 aperture, this lens delivers outstanding large-aperture brightness and bokeh, delivering unprecedented visual experiences. Allowing the photographer to leverage the perspective provided by the wide-angle and the shallow depth of field provided by the large aperture, this lens is ideal not only for such ultra-wide-angle subjects as landscapes and starry skies, but also for snapshots in low light, indoor photography, portraits with a natural bokeh effect, and much more.
Product Features
-
20mm F1.4 lens — thanks to advanced large-diameter aspherical lens manufacturing technologies
To offer an ultra-wide-angle 20mm focal length and F1.4 brightness at wide-open aperture, this lens incorporates a large double aspherical lens 59mm in diameter. Lenses of this type had been considered extremely difficult to manufacture, but Sigma took on the challenge to realise an F1.4 ultra-wide-angle lens that fulfils the strict performance requirements of the Sigma Art line. What made this breakthrough possible were Sigma’s advanced manufacturing technologies, which the company has developed over time by producing a wide range of ultra-wide-angle and large-aperture lenses. For example, milestone lenses such as Sigma 12-24mm F4.5-5.6 EX DG ASPHERICAL HSM, SIGMA 8-16mm F4.5-5.6 DC HSM, and SIGMA 18-35mm F1.8 DC HSM | Art were completely original products that helped Sigma develop outstanding design and production know-how and its current high-precision, high-efficiency production system. In turn, these advances made possible the new Sigma 20mm F1.4 DG HSM | Art. Moreover, Sigma’s advanced optical design minimizes distortion, transverse chromatic aberration, sagittal coma flare, and the reduction of brightness toward the edges of the image. Delivering top performance even at wide-open aperture, this lens can be considered the culmination of Sigma’s Art line. -
Minimised chromatic aberrations
This lens minimises chromatic aberrations, a common issue in large-aperture ultra-wide-angle lenses. It features two FLD (“F” Low Dispersion)* glass and five SLD (Special Low Dispersion) glass elements to minimise transverse chromatic aberration, which is mainly visible around the edge of the image. The optimised lens power distribution helps minimise axial chromatic aberration. As a result, this lens delivers high image quality in every situation without colour smearing, and its rendering performance is consistently sharp with high contrast.
* FLD glass is ultra-low-dispersion glass that offers performance of the highest level. Highly transparent, its refractive index and dispersion are extremely low as compared to conventional types of glass. It offers characteristics very similar to those of fluorite, which is valued for its high anomalous dispersion. These characteristics minimise residual chromatic aberration (secondary spectrum), which cannot be corrected by ordinary optical glass while helping to produce sharp, high-contrast images. -
Minimised distortion
Distortion is a common issue in wide-angle lenses, and it is not possible to correct it simply by changing the aperture value. For this reason, a lens must be designed from the start to minimise this issue. By adjusting the incidence angle of light starting with the first lens element and incorporating optimally positioned aspherical glass elements, the SIGMA 20mm F1.4 DG HSM | Art lens minimises distortion throughout the entire image. -
Top-level performance for the ultra-high-megapixel era
At the dawn of the film camera, there was very little high-sensitivity film, and bright lenses that worked well in low-light conditions came to be known as “high-speed lenses.” These lenses are ideal for shooting indoors, in the evening, under cloudy skies, or in any low-light situation. Since the SIGMA 20mm F1.4 DG HSM | Art provides the benefits of an ultra-wide angle lens with minimal distortion, it is ideal for photographing landscapes, starry skies, and architecture. In addition to capturing wide-angle shots with the whole scene in focus, the photographer can leverage wide-open aperture to take snapshots with the subject in focus and the background blurred with an attractive bokeh effect. Designed for ultra-high-megapixel digital cameras, this high-performance lens delivers outstanding resolution and high-clarity image quality even at wide-open aperture. -
Designed to minimise flare and ghosting
From the start of the design process, SIGMA took steps to minimise flare and ghosting and establish an optical design that is resistant to strong incidental light sources such as backlight. At the prototyping stage, SIGMA used not only simulations but actual photographic experiments to assess flare and ghosting under multiple criteria, identify the causes of these issues under a wide range of situations, and take measures to mitigate them. In addition, SIGMA’s Super Multi-Layer Coating helps further reduce flare and ghosting and provide sharp, high-contrast images even in backlight conditions.
-
Art line delivers high-level artistic expression
Sigma is organising all its interchangeable lenses into three product lines: Contemporary, Art, and Sports, each with a distinctive concept. Designed with a focus on sophisticated optical performance and abundant expressive power, our Art line lenses deliver high-level artistic expression. Offering astonishing rendering performance that meets the highest standard, they are perfect for landscapes, portraits, still-lifes, close-ups, and casual snaps. They are made for the kind of photography that unleashes the inner artist. A powerful ally in every genre of photography, SIGMA’s Art line lenses excel both in the studio for formal works and outdoors for impressive shots of architecture, starry skies, and many other scenes.
-
High-quality design features
In our new product lines, the lens caps and AF/MF switches are newly designed to improve usability. To ensure precise operation, internal parts feature generous use of metal and Thermally Stable Composite (TSC)*, which is highly compatible with metal parts. The lens barrel is engraved with the year of release for instant access to this information.
*TSC offers thermal expansion characteristics similar to those of aluminium. Parts made with TSC deform less, making lens construction of extremely high precision possible. As compared to polycarbonate containing 20% glass, a commonly used material, TSC offers approximately 70% higher elasticity. As compared to polycarbonate containing 30% glass, it offers 25% higher elasticity. (Comparison is between SIGMA-produced components.) -
Evaluation with SIGMA’s own MTF measuring system: A1
We used to measure lens performance with a Modulation Transfer Function (MTF) measuring system using conventional sensors. However, we have developed our own proprietary MTF measuring system (A1)* using 46-megapixel Foveon direct image sensors. Even previously undetectable high-frequency details are now within the scope of our quality control inspections. All SIGMA 20mm F1.4 DG HSM | Art lenses are checked using this A1 system before they are shipped.
*A1: Aizu1 -
Mount Conversion Service available*
An experienced lens manufacturer offering a diverse range of interchangeable lenses, SIGMA provides the innovative Mount Conversion Service, in which we change the mount of a lens in one of our new product lines to another mount of your choice (charges apply). This service can give new life to your favourite lenses when you wish to use them with a different camera body.
*If you require Mount Conversion Service, please contact your nearest SIGMA subsidiary or authorized distributor. -
Rounded diaphragm
The 9-blade rounded diaphragm creates an attractive blur in the out-of-focus areas of the image. -
Hyper Sonic Motor ensures high AF speed
The Hyper Sonic Motor (HSM) ensures silent, high-speed autofocusing, while the optimised AF algorithm helps realise even smoother AF performance. At any time during AF, users may access MF simply by rotating the focus ring. This feature makes faster focus adjustment possible, since there is no need to use the AF/MF focus mode switch. Also, the optional SIGMA USB DOCK allows the user to set the lens to conventional full-time manual focus override. Note: The operation of full-time MF may vary based on mount type. -
Brass bayonet mount
This lens features a brass bayonet mount of highly precise and durable construction. A special surface treatment enhances the mount’s strength and long-term wear-resistance.
Specifications
-
Lens construction: 15 elements in 11 groups
Minimum aperture: F16
Angle of view (35mm): 94.5°
Minimum focusing distance: 27.6cm/10.9in.
Dimensions (diameter x length): ø90.7mm x 129.8mm/3.6in. x 5.1in.
Number of diaphragm blades: 9 (rounded diaphragm)
Maximum magnification ratio: 1:7.1
Autofocus: Yes
Filter Thread: None
Format Compatibility: 35mm Film / Full-Frame Digital Sensor /APS-C
Dimensions (DxL): Approx. 3.57 x 5.11" (90.7 x 129.8 mm)
Weight: 2.09 lb (950 g)
