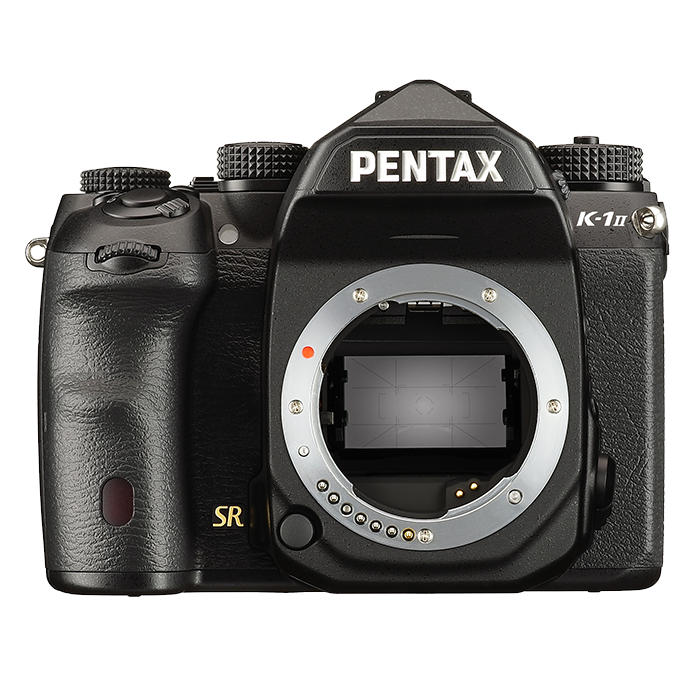

Pentax K-1 II Digital SLR Body

Type

TTL autofocus, auto-exposure SLR digital-still camera

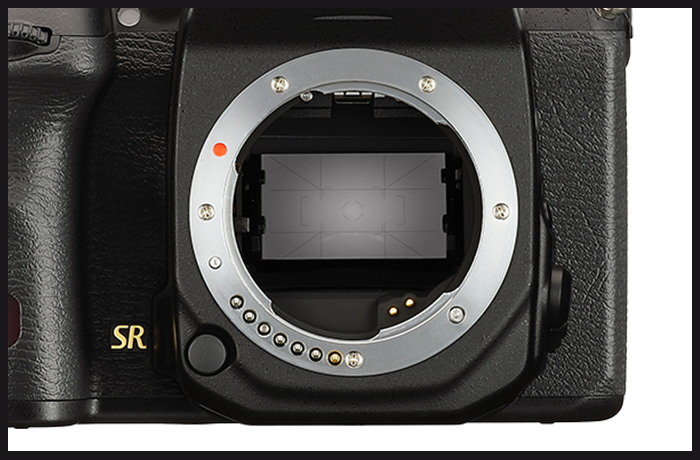

Lens Mount

PENTAX K_AF2 bayonet mount (AF coupler, lens information contacts, K-mount with power contacts)

Compatible Lens

K_AF4, K_AF3, K_AF2 (power zoom compatible), K_AF, K_A mount lens

Image capture unit

Image Sensor

Primary colour filter, CMOS.  Size: 35.9 x 24.0 (mm)

Effective Pixels

Approx. 36.40 megapixels

Total Pixels

Approx. 36.77 megapixels

Dust Removal

Image sensor cleaning using ultrasonic vibrations "DR II"

Sensitivity
(Standard output)

ISO AUTO/100 to 819200 (EV steps can be set to 1EV, 1/2EV or 1/3EV)

Image Stabilizer

Sensor-shift shake reduction (SR II: Shake Reduction)(5-axis)

AA Filter Simulator

Moiré reduction using SR unit.  OFF/Type1/Type2/ Bracketing(2 images)/ Bracketing (3 images)

File formats

File format

RAW (PEF/DNG), JPEG (Exif 2.3), DCF2.0 compliant

Recorded Pixels

[35mm Full Frame]
JPEG: L(36M:7360x4912), M(22M:5760x3840), S(12M:4224x2816), XS(2M:1920x1280)
RAW: (36M:7360x4912)

[APS-C size]
JPEG: L(15M:4800x3200), M(12M:4224x2816), S(8M:3456x2304), XS(2M:1920x1280)
RAW: (15M:4800x3200)

Quality Level

RAW (14bit): PEF, DNG
JPEG: ★★★ (Best), ★★ (Better), ★ (Good), RAW + JPEG simultaneous capturing available

Color Space

sRGB, AdobeRGB

Storage Medium

SD, SDHC and SDXC Memory Card (Conforms to USH-I standards)

Dual SD slot

Sequential Use, Save to Both, Separate RAW/JPEG, Image copy between slots possible

Storage Folder

Folder Name: Date (100_1018,101_1019...) or  User assigned folder name (Default "PENTX")

Recording File

File Name: "IMGP****" or User assigned filename
File name numbering: Sequential, Reset

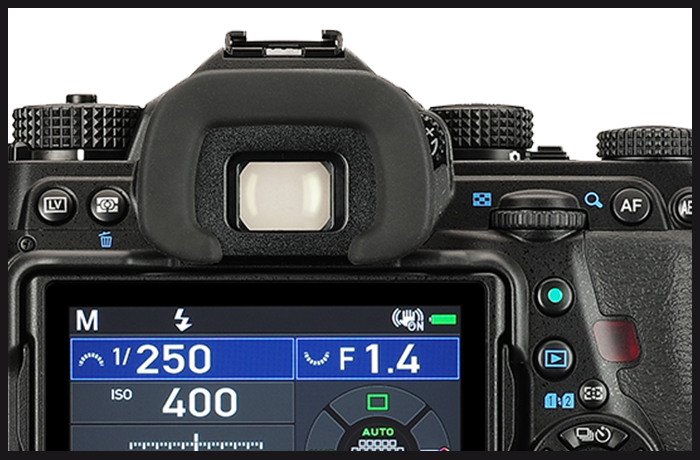

Viewfinder

Type

Pentaprism Finder

Coverage (FOV)

Approx. 100%

Magnification

Approx. 0.70x (50mmF1.4 at infinity)

Eye-Relief Length

Approx. 20.6mm (from the view window), Approx. 21.7mm (from the center of lens)

Diopter adjustment

Approx. -3.5m to + 1.2m^-1

Focusing Screen

Fixed Natural-Bright-Matte III focusing screen

Viewfinder Overlay

AF Points, Grid Display, Electronic Level, AF Frame, Spot Metering Frame, Crop

Live view

Type

TTL method using image sensor

Focusing Mechanism

Contrast detection (Face detection, Tracking, Multiple AF points, Select, Spot)
Focus Peaking: ON/OFF

Display

Field of View approx. 100%, Magnified view (up to 16x),
Grid Display (4x4 Grid, Golden Section, Scale display, Square 1, Square 2, Grid Color: Black/White ), Histogram, Bright area warning, Composition Adjustment

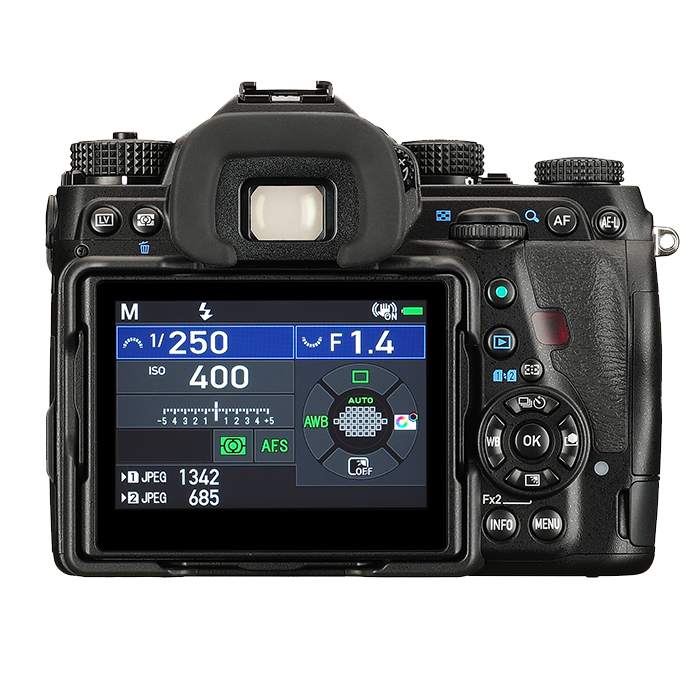

LCD monitor

Type

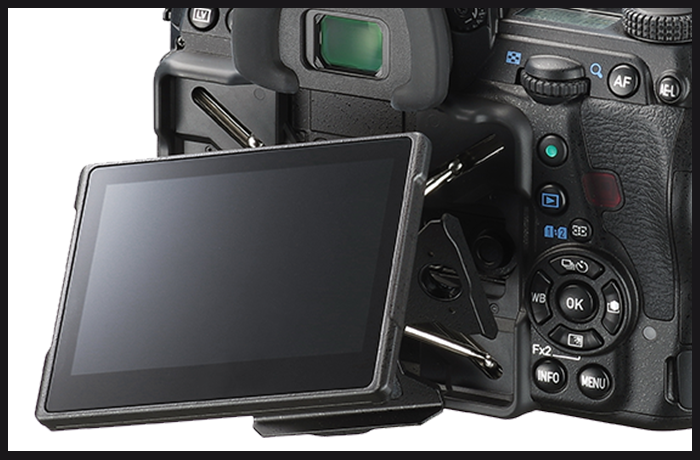

Wide viewing angle TFT colour LCD, Air-gapless glass. Flexible-tilt.

Size

3.2 inch (aspect ratio 3:2)

Dots

Approx. 1037K dots

Adjustment

Brightness,  Saturation and Colors adjustable

Outdoor View Setting

Adjustable ±2 step

Night Vision LCD Display

ON/OFF

White Balance

Type

Method using a combination of the image sensor and the light source detection sensor

White Balance

AUTO WB, Multi Auto WB,
Daylight, Shade, Cloudy, Fluorescent Light (D:Daylight Color, N:Daylight White, W:Cool White, L:Warm White), Tungsten Light, CTE,
Manual WB (up to 3 settings), Color Temperature Configuration (up to 3 settings), Copying the white balance setting of a captured image

Fine Adjustment

Adjustable ±7 steps on A-B axis or G-M axis

Autofocus System

Type

TTL: Phase-matching autofocus

Focus Sensor

SAFOX 12, 33 point (25 cross-type focus points in the center)

Brightness Range

EV-3 to 18 (ISO 100 / at normal temperature)

AF mode

Single AF (AF.S), Continuous AF (AF.C)

AF Point Selection

Spot, Select, Expanded Area (S, M, L), Zone select, Auto (33 AF points)

AF Assist Light

Dedicated LED AF assist light

Metering

Type

TTL open aperture metering using 86K pixel RGB sensor, Multi-segment, Center-weighted and Spot metering

Metering Range

EV-3 to 20  (ISO100 at 50mm F1.4)

Exposure Mode

Scene Analyze Auto, Program, Sensitivity Priority, Shutter Priority, Aperture Priority, Shutter & Aperture Priority, Manual, Bulb, Flash X-sync Speed, USER1, USER2, USER3, USER4, USER5

EV Compensation

±5EV (1/2EV steps or 1/3EV steps can be selected)

AE Lock

Button type (timer type: two times the meter operating time set in Custom Setting);
Continuous as long as the shutter button is halfway pressed

Shutter

Type

Electronically controlled vertical-run focal-plane shutter
* Electronic shutter when using Pixel Shift Resolution

Shutter Speed

Auto:1/8000 to 30 sec., Manual:1/8000 to 30 sec. (1/3EV steps or 1/2EV steps), Bulb (Timed exposure setting possible from 10 sec. to 20min.)

LV Electronic Shutter

ON/OFF

Drive modes

Mode Selection

Still Image:
Single Frame, Continuous (H, M, L), Self-timer (12s, 2s, Continuous), Remote Control (0s., 3s., Continuous), Bracketing (2, 3 or 5 frames), Mirror-up (Possible to use with Remote Control), Multi-Exposure (Possible to use with Continuous, Self-timer or Remote Control), Interval Shooting, Interval Composite,  Interval Movie Record, Star Stream

Movie:
Remote Control
* Bracketing, Interval Shooting, Interval Composite, Interval Movie Record and Star Stream are possible to use with Self-timer/Remote Control.

Continuous Shooting

[35mm Full-Frame]
Max. approx. 4.4 fps, JPEG ( L: ★★★ at Continuous H): up to approx. 70 frames, RAW: up to approx. 17 frames
Max. approx. 3.0 fps, JPEG  L: ★★★ at Continuous M): up to approx. 100 frames, RAW: up to approx. 20 frames
Max. approx. 0.7 fps, JPEG ( L: ★★★ at Continuous L): up to approx. 100 frames, RAW: up to approx. 100 frames
[APS-C size]
Max. approx. 6.4 fps, JPEG ( L: ★★★ at Continuous H): up to approx. 100 frames, RAW: up to approx. 50 frames
Max. approx. 3.0 fps, JPEG  L: ★★★ at Continuous M): up to approx. 100 frames, RAW: up to approx. 70 frames
Max. approx. 1.0 fps, JPEG ( L: ★★★ at Continuous L): up to approx. 100 frames, RAW: up to approx. 100 frames

*ISO100

Multi-Exposure

Composite Mode(Additive/Average/Bright)
Number of Shots(2 to 2000 images)

Interval Shooting

[Interval Shooting] Interval: 2s. to 24h./ Standby Interval: Min.･1s. to 24h., Number of shots: 2 to 2000 images, Start Interval: Now/Self-timer/Remote Control/Set Time

[Interval Composite] Interval: 2s. to 24h./ Standby Interval: Min.･1s. to 24h., Number of shots: 2 to 2000 images, Start Interval: Now/Self-timer/Remote Control/Set Time, Composite Mode: Additive/Average/Bright, Save Process: On/Off

[Interval Movie] Recorded Pixels: 4K/FullHD/HD, File Format: Motion JPEG (AVI), Interval:2s. to 24h./ Standby Interval: Min･1s. to 24h., Number of shots: 8 to 2000 images (8 to 500 images at 4K), Start Interval:Now/Self-timer/Remote Control/Set Time

[Star Stream]  Recorded Pixels: 4K/FullHD/HD, File Format: Motion JPEG (AVI), Interval: Min･1s. to 24h., Number of shots: 8 to 2000 images (8 to 500 images at 4K), Start Interval: Now/Self-timer/Remote Control/Set Time, Fade-out: Off/Low/Medium/High

External Flash

Flash Modes

Auto Flash Discharge, Auto Flash + Red-eye Reduction, Flash On, Flash On + Red-eye Reduction, Slow-speed Sync, Slow-speed Sync + Red-eye, P-TTL, Contrast-control-sync, High-speed sync, Wireless sync
* Contrast-control-sync and High-speed sync requires 2 or more dedicated external flash

Sync Speed

1/200sec.

Flash Exposure Compensation

-2.0～+1.0EV

Capture Settings

Custom Image

Auto Select, Bright, Natural, Portrait, Landscape, Vibrant, Radiant, Muted, Flat, Bleach Bypass, Reversal Film, Monochrome, Cross Processing

Cross Process

Random, Preset 1-3, Favorite 1-3

Digital Filter

Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome

Clarity

Adjustable ±4

Skin Tone

Type1/Type2

HDR

Auto, HDR1, HDR2, HDR3, Advanced HDR, Exposure bracket value adjustable, Automatic composition correction function

Pixel Shift Resolution

Available, Motion Correction ON/OFF , Image Stabilization On

Lens Correction

Distortion Correction, Peripheral Illumin. Correction, Lateral Chromatic Aberration Correction, Diffraction Correction

D-RANGE Compensation

Highlight Correction, Shadow Correction

Noise Reduction

Slow Shutter Speed NR, High-ISO NR

GPS

GPS Logging (Logging Interval, Logging Duration, Memory Card Options), GPS Time Sync

Electronic Compass

Available

Astrotracer

Possible

Horizon Correction

SR On: correction up to 1 degrees, SR Off: correction up to 2 degrees

Composition Adjustment

Adjustment range of ±1.5mm up, down, left or right (1mm when rotated); Rotating range of 1 degree

Electronic Level

Displayed in viewfinder (Horizontal and vertical); Displayed on LCD monitor (Horizontal and vertical)

Movie

File Format

MPEG-4 AVC/H.264（MOV）

Recorded Pixels

Full HD(1920x1080, 60i/50i/30p/25p/24p）
HD (1280x720, 60p/50p)

Sound

Built-in stereo microphone, external microphone (Stereo recording compatible)
Recording Sound Level adjustable, Wind Noise Reduction

Recording Time

Up to 25 minutes or 4GB ; automatically stops recording if the internal temperature of the camera becomes high.

Custom Images

Auto Select, Bright, Natural, Portrait, Landscape, Vibrant, Radiant, Muted, Flat, Bleach Bypass, Reversal Film, Monochrome, Cross Processing

Cross Processing

Random, Preset 1-3, Favorite 1-3.

Digital Filter

Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome

Playback

Playback View

Single frame,  Multi-image display (6,12, 20, 35, 80 segmentation), Display magnification (up to 16, 100% display and quick magnification available), Grid display (4x4 Grid, Golden Section, Scale display, Square 1, Square 2, Grid Color: Black/White ), Rotating, Histogram (Y histogram, RGB histogram), Bright area warning, Auto Image Rotation, Detailed information, Copyright Information (Photographer, Copyright holder), GPS information (latitude, longitude, altitude, Coordinated Universal Time) , Orientation,  Folder Display, Calendar Filmstrip Display, Slide Show,

Delete

Delete single image, delete all, select & delete, delete folder, delete instant review image

Digital Filter

Base Parameter Adj, Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome, Tone Expansion, Sketch, Water Color, Pastel, Posterization, Miniature,  Soft, Starburst, Fish-eye, Slim, Monochrome

RAW Development

RAW file select：
Select Single Image, Select Multiple Images, Select a folder

RAW Development Parameter:
White Balance, Custom Image,  Sensitivity, Clarity, Skin Tone, Digital filter, HDR, Pixel Shift Resolution, Shadow Correction, High-ISO NR, Distortion Correction, Peripheral Illumin. Corr., Lateral Chromatic Aberration Correction, Diffraction Correction, Color Fringe Correction, File Format (JPEG/TIFF), Aspect Ratio, JPEG Recorded Pixels, JPEG Quality, Color Space

Edit

Image Rotation, Color Moiré Correction, Resize, Cropping (Aspect ratio and Slant adjustment available),
Movie Edit (Divide or delete selected frames), Capturing a JPEG still picture from a movie, Saving RAW data in buffer memory, Image Copy

Customization

USER Mode

Up to 5 settings can be saved

Custom Functions

26 items

Mode Memory

17 items

Button Customization

Fx1 Button, Fx2 Button (One Push File Format, Outdoor View Setting, Flash Mode, Pixel Shift Resolution, Shake Reduction, Horizon Correction, Electronic Level)
AF Button (AF1/ AF2/ Cancel AF)
Preview Dial (Optical Preview/Digital Preview)
Various settings for the action of the e-dials in each exposure mode can also be saved.

AF Customization

AF.S: Focus-priority/ Release-priority
1st Frame Action in AF.C: Release-priority/Auto/Focus-priority
Action in AF.C Continuous: Focus-priority, Auto, FPS-priority
Hold AF Status: OFF, Low, Medium, High
AF in Interval Shooting: Locks focus at 1st exposure, Adjusts focus for each shot
AF with Remote Control: Off/On

Operation Control Lock

Type1: E-Dial, EV Compensation, ISO, Green Button, AE Lock
Type2: 4-way controller, AF point change button, Change AF Point, OK Button, Menu Button

Text Size

Standard, Large

World Time

World Time settings for 75 cities (28 time zones)

Language

English, French, Germany, Spanish, Portuguese, Italian, Dutch, Danish, Swedish, Finnish, Polish, Czech, Hungarian, Turkish, Greek, Russian, Korean, Traditional Chinese, Simplified Chinese, Japanese

AF Fine Adjustment

±10 step, Uniform adjustment, Individual adjustment (up to 20 can be saved)

Illumination Settings

LCD Panel (High/Low/Off), Backside Controls (High/Low/Off), Lens Mount (On/Off), Card Slot/Connector (On/Off)

Indicator Lamps

Wi-Fi (High/Low/Off), GPS (High/Low/Off), Self-timer (On/Off), Remote Control (On/Off)

Copyright Information

Names of "Photographer" and "Copyright Holder" are embedded to the image file.
Revision history can be checked using the provided software.

GPS/Electronic Compass

Satellites

GPS, QZSS, SBAS(WAAS/EGNOS/GAGAN/MSAS)

Reception Frequency

L1 1575.42MHz

Recorded Information

Latitude, Longitude, Altitude, Time (UTC), Direction

Geodesics

World Geodetic System (WGS84)

GPS Logging

KML format, Logging Interval: 5/10/15/30sec. /1min., Logging Duration: 1-24hr. (Up to 9hours at Logging Interval 5sec. Up to 18hrs. at Logging Interval 10sec.)

Electronic Compass

Azimuth calculation using  triaxial geomagnetic sensor and triaxial acceleration sensor, True north standard

Power supply

Battery Type

Rechargeable Lithium-ion Battery D-LI90

AC Adapter

AC Adapter Kit K-AC167 (Optional)

Battery Life

Number of recordable images: Approx.: 670 images
Playback time: Approx. 340 minutes
* With a fully-recharged Rechargeable Lithium-ion Battery. Tested in compliance with CIPA standard.
  Actual results may vary depending on the shooting condition.

Interfaces

Connection Port

USB2.0 (micro B), External power supply terminal, External cable switch terminal, X-sync socket, HDMI output terminal (Type D) , Stereo microphone input terminal, Headphone terminal

USB Connection

MSC/PTP

Wireless LAN

Standards

IEEE 802.11b/g/n

Frequency (Center Frequency)

2412MHz～2462MHz (1ch～11ch)

Security

Authentication:  WPA2, Encryption:  AES

Dimensions and Weight

Dimensions

Approx. 136.5mm (W) x110mm (H) x 85.5mm (D) (excluding protrusions)

Weight

Approx. 1010g (Including dedicated battery and SD Memory Card),
Approx. 925g (body only)

Operating Environment

Temperature

-10°C～40°C (14°F～104°F)

Humidity

85% or less (no condensation)

Accessories

Included

Strap O-ST162, ME Viewfinder Cap, Rechargeable Lithium-ion Battery D-LI90, Battery Charger D-BC90, AC plug cord, Software (CD-ROM) S-SW162 Eyecup FT, Hot shoe cover FK, Sync socket 2p cap, Body mount cap KII, Battery Grip terminal cover

Software

Digital Camera Utility 5
