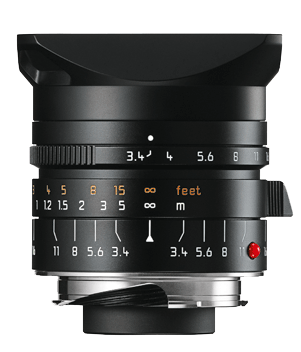

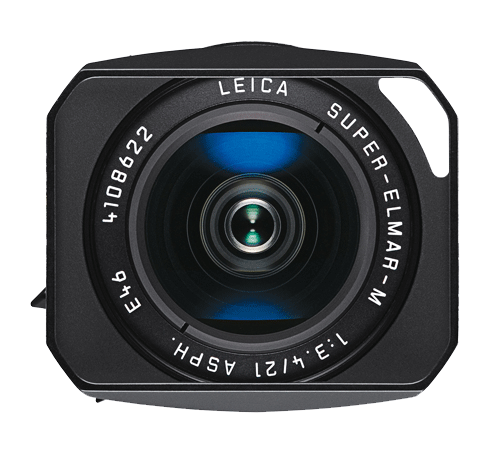

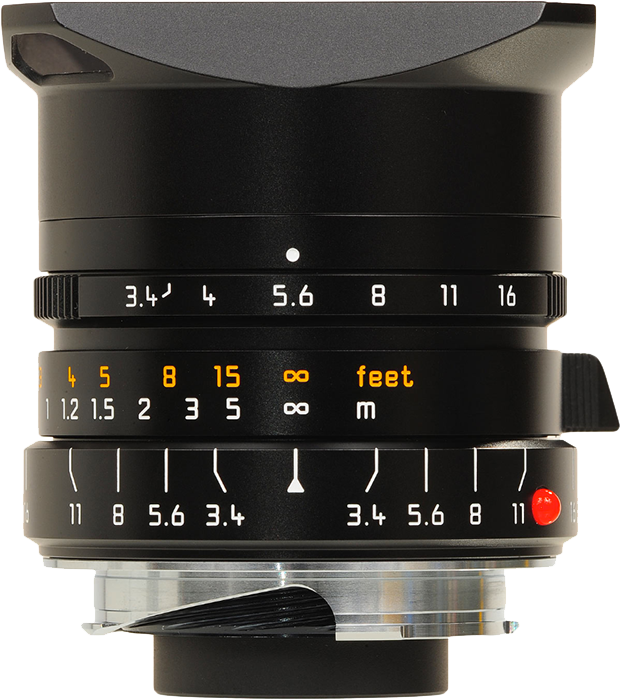

Leica Super-Elmar-M 21mm f/3.4 ASPH Lens
The new Leica Super-Elmar-M 21mm f/3.4 ASPH. is a worthy successor to the now legendary Leica Super-Angulon-M 21 mm f/3.4. Just like its popular forerunner, the new super-wide-angle lens is characterized by superb imaging performance and amazingly compact construction. Even at maximum aperture, the lens delivers outstanding rendition of details and optimum contrast up to its closest focusing distance. The lens is supplied complete with a metal, screw-mounted lens hood to prevent flare effects and ensure perfect image sharpness. Thanks to its wide angle of view, the Leica Super-Elmar-M 21mm f/3.4 ASPH. is particularly suitable for architectural and landscape photography. At the same time, this focal length is also ideal for dynamic photojournalistic photography. The sophisticated optical design and construction of the lens comprises eight elements - including one with two aspherical surfaces and another four with anomalous partial dispersion - and plays a decisive role in reducing distortion and vignetting to an absolute minimum. With the new Super-Elmar-M, M photographers now have a compact and versatile high-performance lens for the broad spectrum of photographic situations covered by super-wide-angle photography.
Technical specifications
|
Angle of view (diagonal, horizontal, vertical) |
For 35mm format (24 x 36mm): 91°, 80°, 59° For Leica M8 models (18 x 27mm): 74°, 64°, 46° (Focal length equivalent: approx. 28mm) |
|
Optical design |
Number of lenses/groups: 8/7 Aspherical surfaces: 2 Position of entrance pupil: 15.6 mm (to the apex of the first lens surface) |
|
Distance settings |
Working range: 0.7 m to ∞ Scales: Combined metre/feet graduation Smallest object field: 706 x 1059mm (35mm format) Largest reproduction ratio: 1:29.4
|
|
Aperture |
Settings / function: click-stops and half-stop detents Smallest aperture: 16 |
|
Bayonet mount |
Leica M quick-change bayonet with 6-bit bar-coding for digital Leica M models |
|
Filter mount / lens hood |
Non-rotating with inner threading for E46 screw-in filters, outer threading with stop for mounting the lens hood (supplied with the lens) |
|
Dimensions |
Length to bayonet flange: approx. 43/55mm (with/without lens hood) Largest diameter: approx. 53mm |
|
Weight |
Approx. 279g |
|
Accessories included |
Metal lens hood, front cap for lens hood, rear cap, leather case, instruction manua |
Leica's lens manufacturing is designed to deliver high performance lenses that ensure the best possible picture in any given situation. To achieve this goal, in-depth knowledge of the properties of hundreds of types of glass, the effectiveness of complex coatings, precision manufacturing, and customised fine-tuning, is imperative.
It takes decades of experience to produce perfect image quality. This however is nothing less than the basic requirement when our objective is to supply photographers with equipment capable of achieving pictures of unsurpassed crisp quality, colour brilliance, fullness of detail and richness of contrast.
