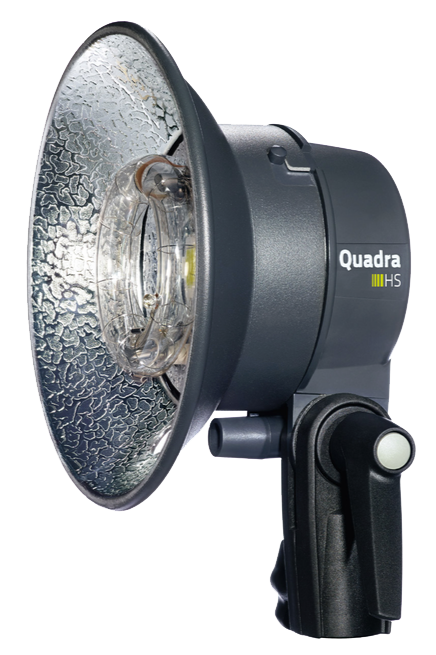

Elinchrom Quadra HS Head
Elinchrom announces a new Quadra flash head for the ELB 400 and Quadra series, dedicated to Hi-Sync photography.
In The Box
- 1x Quadra HS head (20153)
- 1x Quadra head cable 2.5 m (11001)
- 1x Quadra reflector 13.5 cm (26145)
- 1x Quadra multifunction cap (25100)
- 1x Quadra protective cap (25101)
Product Features
The Quadra HS Head is a powerful, full-functioning miniaturized flash head which is compatible with the
ELB 400 and all previous generations of Quadra packs.
Built to be as portable as possible and weighing only 0.28 kg (0.62 lbs), this head not only packs well but it is mountable in situations that would be impossible for a full-sized flash head.
The HS name means the system is optimized for Hi-Sync photography such as high shutter speeds or overpowering the sun and limits the gradient. It is ideal to use in conjunction with the new EL-Skyport transmitter Plus HS.
The Quadra HS head also integrates a daylight balanced LED modelling lamp that produces the equivalent of 50W of tungsten light output.
There exist many portable accessories dedicated to the Quadra mount but Elinchrom also offers the Quadra reflector adapter for those who want full access to the complete range of Elinchrom accessories, including Rotalux, Litemotiv, etc.
The head includes an interchangeable 2.5m head cable, the Quadra reflector 13.5 cm with multifunction cap and a Quadra protective cap.
Specifications
| Maximum Watt/seconds | 424 |
| F-stop at full power | 90.0 (at1m, 100 ISO, reflector 48 degree) |
| Flash duration |
Port A 100%: 1/550 Port B 33%: 1/1100 |
| User replaceable flashtube | Yes |
| Changeable reflector |
Yes, Quadra mount Full range of Elinchrom accessories via the Quadra refkectir adapter |
| Circuit protection | Yes |
| Interchangeable Cable | Yes |
| Modelling Lamp Wottage | Daylight LED: 50W tungsten equivalent |
| Modelling lamp on/off switch | On separately purchased pack |
| Fan cooled | No |
| Dimensions | 8.0x7.5cm (3.1x2.9") without folding stand mount or reflector |
| Weight | 0.28KG (0.62lbs) |
