3 Legged Thing QR11-LC 2.0 Universal L-bracket
The QR11-LC 2.0 is the 2nd generation of 3 Legged Thing’s universal L-bracket series and has been developed specifically for photographers who want to switch between landscape and portrait orientation while retaining the focal plane and level horizon.
For DSLR and Mirrorless Cameras
The 3 Legged Thing QR11-LC 2.0 Universal L-bracket has been designed for use with most DSLR and Mirrorless cameras and is available in either Copper or Grey.
Two 1/4"-20 Screw Mounts

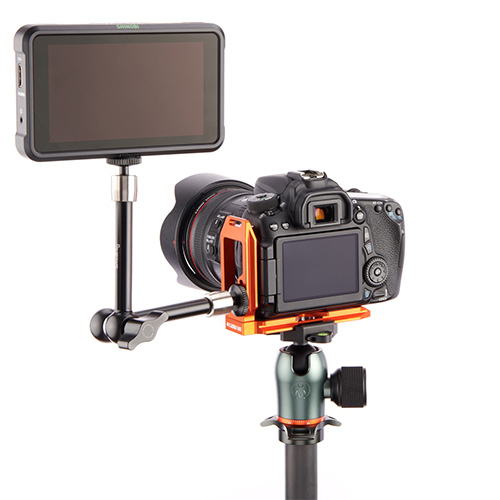

The L-bracket features a reversible Dual-Arca vertical aspect that is equipped with two 1/4"-20 screw threads allowing you to attach accessories such as lights, microphones and monitors.
Easy Adjustments
As this works with most DSLR and Mirrorless cameras, you may have to make a few adjustments to allow access to the battery and/or cable doors. The QR11-LC 2.0 features left and right slide adjustments as well as a Dual-Arca upright so that you can access the two 1/4"-20 accessory threads with ease. You can do this with the included multi-tool that features a hex key, coin key, key ring, carabiner and bottle opener.
Also Available
If you are looking for an L-bracket that fits full-bodied cameras (with battery grip) then you should take a look at the 3 Legged Thing QR11-FBG 2.0 Universal L-bracket for Full-Bodied Cameras.
Key Features
- Fits most Mirrorless and DSLR cameras
- Standard 38mm Arca-Swiss compatible quick release plate
- Base cut-outs for better access to rear screens
- Reversible Dual-Arca vertical aspect with two 1/4"-20 screw threads for attachment of accessories
- Fitted with 2 x 2.5 mm security retaining screws in the base
- Comes with 1 x 1/4"-20 stainless steel camera screw
- Camera strap slots, one on each aspect
- Available in two colours - Copper or Metallic Slate Grey
Click here for full product specifications>

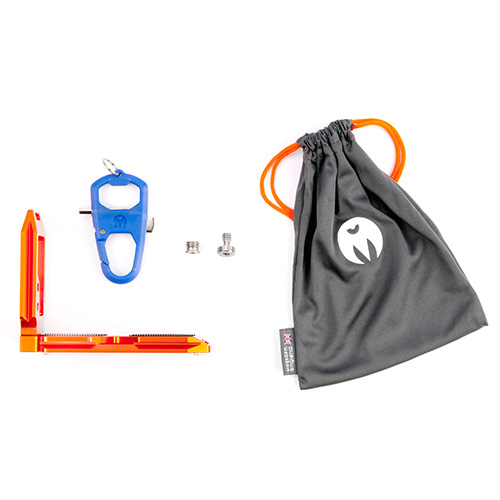

What’s in the box?
- 1 x QR11-LC 2.0 Quick Release universal L-Bracket
- 1 x 1/4”-20 Stagsden Stainless Steel camera screw
- 2 x Retaining bolts (2.5mm hex) for horizontal axis security
- 1 x Multi-Tool (hex key, coin key, key ring, carabiner and bottle opener)
- 1 x Microfibre Pouch
Key Specifications
|
Base Length |
115mm/ 4.52" |
|
Base Width |
38 mm / 1.5" |
|
Working base range |
n/a |
|
Vertical Aspect Height |
87mm/ 3.42” |
|
Vertical Aspect Width |
38 mm / 1.5" |
|
Shoe |
38 mm / 1.5" Standard Arca-Swiss |
|
Weight |
104 g / 3.66 oz |
|
Compatibility |
Arca-Swiss |
|
Camera Mounting Screw |
1/4" - 20 |
|
Warranty |
5 Year Global Warranty |
|
Box/Pack Dimensons |
16 x 11.5 x 5 cm / 6.29 x 4.52 x 1.96 “ |
|
Box/Pack Weight |
189 g / 6.66 oz |
|
Carton Dimensions |
545 x 345 x 280 mm / 21.45 x 13.58 x 11 " |
|
Carton Gross Weight |
8.8 kg / 19.4 lbs |
|
Carton Net Weight |
8.1 kg / 17.85 lbs |
