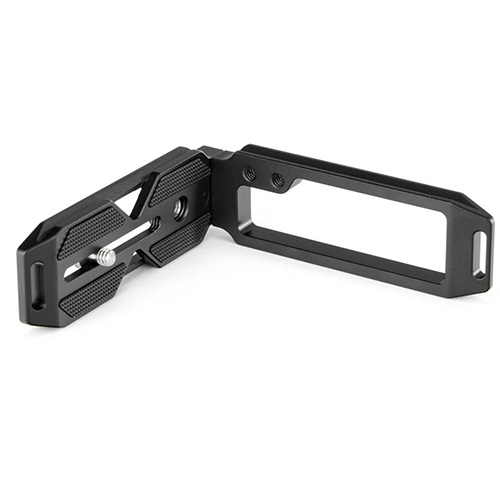

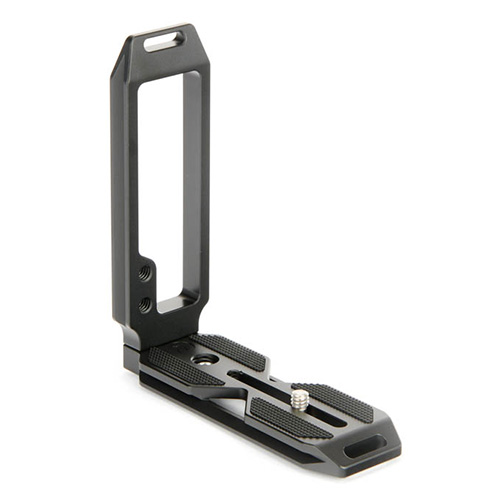

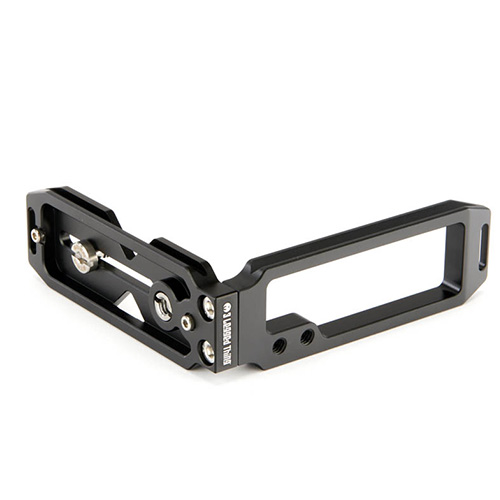

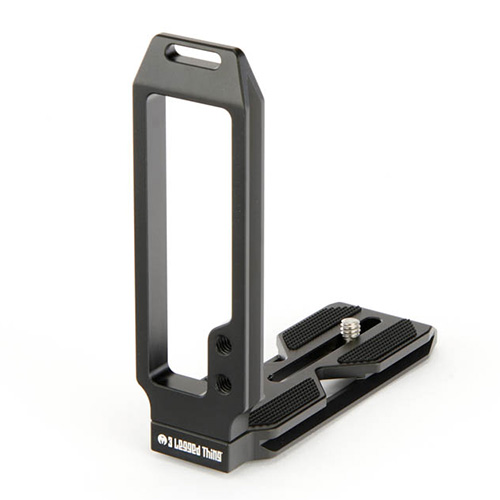

3 Legged Thing QR11-FBG 2.0 Universal L-bracket for Full-Bodied Cameras
The QR11-FB 2.0 is the 2nd generation of 3 Legged Thing’s universal L-bracket series and has been developed specifically for photographers who want to switch between landscape and portrait orientation while retaining the focal plane and level horizon.
For Full-Bodies Cameras
The 3 Legged Thing QR11-FB 2.0 Universal L-bracket has been designed for use with most full-bodied cameras or cameras with battery grips attached and is available in either Copper or Grey.
Two 1/4"-20 Screw Mounts

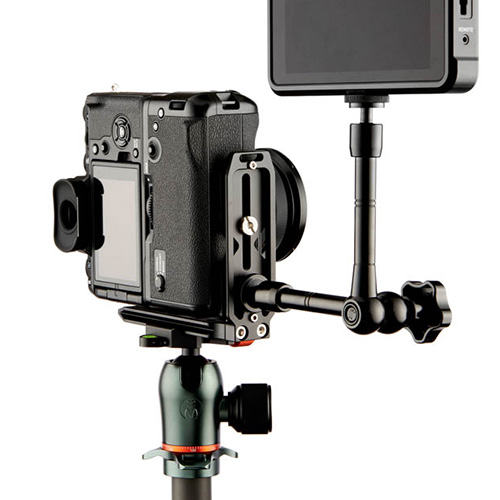

The L-bracket features a reversible Dual-Arca vertical aspect that is equipped with two 1/4"-20 screw threads allowing you to attach accessories such as lights, microphones and monitors.
Easy Adjustments
As this works with a variety of cameras, you may have to make a few adjustments to allow access to the battery and/or cable doors. The QR11-FB 2.0 features left and right slide adjustments as well as a Dual-Arca upright so that you can access the two 1/4"-20 accessory threads with ease. You can do this with the included multi-tool that features a hex key, coin key, key ring, carabiner and bottle opener.
Also Available
If you are looking for an L-bracket that fits smaller-bodied cameras (without battery grip) then you should take a look at the 3 Legged Thing QR11-LC 2.0 Universal L-bracket.
Key Features
- Fits most Full-Bodied cameras or cameras fitted with battery grips
- Standard 38mm Arca-Swiss compatible quick release plate
- Base cut-outs for better access to rear screens
- Reversible Dual-Arca vertical aspect with two 1/4"-20 screw threads for attachment of accessories
- Fitted with 2 x 2.5 mm security retaining screws in the base
- Comes with 1 x 1/4"-20 stainless steel camera screw
- Camera strap slots, one on each aspect
- Available in two colours - Copper or Metallic Slate Grey
Click here for full product specifications>
What’s in the box?
- 1 x QR11-FB 2.0 Quick Release universal L-Bracket
- 1 x 1/4”-20 Stagsden Stainless Steel camera screw
- 2 x Retaining bolts (2.5mm hex) for horizontal axis security
- 1 x Multi-Tool (hex key, coin key, key ring, carabiner and bottle opener)
- 1 x Microfibre Pouch
Key Specifications
|
Base Length |
115mm/ 4.52" |
|
Base Width |
38 mm / 1.5" |
|
Working base range |
n/a |
|
Vertical Aspect Height |
125mm/ 4.92” |
|
Vertical Aspect Width |
38 mm / 1.5" |
|
Shoe |
38 mm / 1.5" Standard Arca-Swiss |
|
Weight |
112 g / 3.95 oz |
|
Compatibility |
Arca-Swiss |
|
Camera Mounting Screw |
1/4" - 20 |
|
Warranty |
5 Year Global Warranty |
|
Box/Pack Dimensons |
16 x 15 x 5 cm / 6.29 x 5.9 x 1.96 “ |
|
Box/Pack Weight |
206 g / 7.26 oz |
|
Carton Dimensions |
545 x 345 x 360 mm / 21.45 x 13.58 x 14.17 " |
|
Carton Gross Weight |
9.8 kg / 21.60 lbs |
|
Carton Net Weight |
8.9 kg / 19.62 lbs |
