3 Legged Thing ELLIE L Bracket with Peak Design Base
L-Brackets are primarily used to switch from landscape to portrait on a tripod whilst keeping the focal plane and horizon. Ellie PD is identical to the original Ellie, but has a shoe compatible with Peak Design Capture v3 system. Also compatible with Arca-Swiss, and featuring screen slope and strap connector.
Will it fit my camera?
Compatible with standard Arca-Swiss clamps, Ellie features two different 2 screw mount slots in the base. The bracket length can be adjusted by moving two rigid steel sliding bars which the user fixes into a position with the supplied tool that is suitable for their camera. The rear edge of the base is sloped to better enable screen access. Ellie’s vertical aspect has an opening in one side, allowing users with L-shaped cable pins to connect accessories.

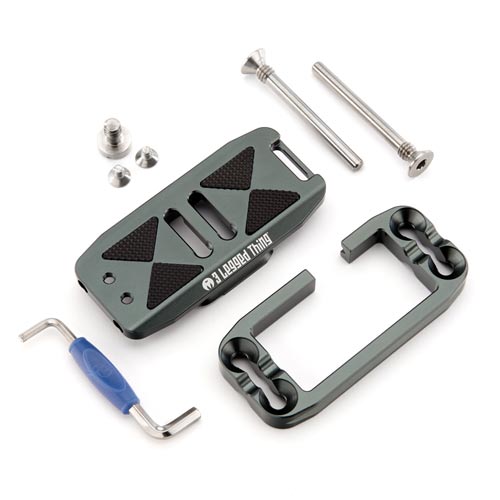

What's in the box?
- Ellie PD Arca-Swiss and Peak Design Capture-compatible* quick release L-Bracket with 85mm base
- Stagsden Stainless Steel camera screw
- Dual-ended mini tool with two hex keys for adjustment of vertical aspect and to secure stainless steel sliding rods into place
Product specifications
- Base Length - 85 mm / 3.35 "
- Working Base Length - 95 - 128 mm / 3.74 - 5.04 "
- Upright - 85mm / 3.35 "
- Shoe - 38 mm / 1.5 " Arca Swiss and Peak Design Capture v3 Compatible
- Weight - 94 g / 0.21 lb
